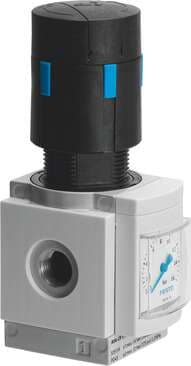

531784 Festo Compressed Air Preparation Units

Product Details

• Series
  MS
• Pressure gauge
  with pressure gauge
• Temperature of medium
  -10 °C ... 60 °C
• Pneumatic connection 2
  1/4 NPT
• Seals material
  NBR
• Size
  4
• Actuator lock
  Rotary knob with detent can be closed with accessories
• Symbol
  00995251
• Standard nominal flow rate
  1500 l/min
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Pneumatic connection 1
  1/4 NPT
• Material of operator panel
  PA POM
• Type code
  MS4N-LRB
• Design
  Directly controlled diaphragm regulator with continuous compressed air supply
• Operating pressure
  0.8 bar ... 14 bar
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
• Type of mounting
  Optionally: With accessories
• Material of sub-base
  Die-cast aluminum
• Diaphragm material
  NBR
• Controller function
  Outlet pressure constant With return flow function
Pressure regulation range
0.5 bar ... 12 bar
Storage temperature
-10 °C ... 60 °C
Product weight
222 g
Note on materials
RoHS-compliant
Housing material
Die-cast aluminum
For use in the food industry
See supplementary material information
Mounting position
Any
Max. pressure hysteresis
0.25 bar
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Ambient temperature
-10 °C ... 60 °C
