534341 Festo Stop Valves (non-return)
Part#:534341
Alt. Part#:GRLA-3/8-QS-6-RS-D
Manufacturer:Festo
Category:Stop Valves (non-return)
Product Lifecycle:Active
Product description

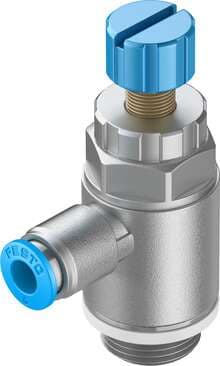

one-way flow control valve GRLA-3/8-QS-6-RS-D With knurled screw and lock nut Valve function: One-way flow control function, Pneumatic connection, port 1: QS-6, Pneumatic connection, port 2: G3/8, Adjusting element: Knurled screw, Mounting type: (* Thre
Product Details
- Maritime classification See certificate
- Adjusting element Knurled screw
- Ambient temperature -10 °C ... 60 °C
- Standard flow rate in non-return direction at 6 -> 0 bar 840 l/min ... 890 l/min
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Product weight 72 g
- Material of adjusting screw High-alloy stainless steel
- Pneumatic connection 1 QS-6
- Type of mounting Screw-in With external thread
- Standard nominal flow rate in non-return direction 320 l/min ... 495 l/min
- Standard flow rate in flow control direction 6 -> 0 bar 740 l/min
- Temperature of medium -10 °C ... 60 °C
- Releasing ring material POM
- Pneumatic connection 2 G3/8
- Operating pressure 0.2 bar ... 10 bar
- Mounting position Any
- Operating pressure for entire temperature range 0.2 bar ... 10 bar
- Storage temperature -10 °C ... 40 °C
- Seals material NBR
- Hollow bolt material Wrought aluminum alloy Anodized
- Valve function Flow control non-return function
- Standard nominal flow rate in flow control direction 495 l/min
- Symbol 00991452
- Note on materials RoHS-compliant
- Swivel joint material Die-cast zinc
- Type code GRLA
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Nominal tightening torque 10 Nm
- Knurled head material Wrought aluminum alloy Anodized
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
