534946 Festo Compressed Air Preparation Units

534946 on Powermatic Associates
Festo

Part#:534946

Alt. Part#:MS6N-LRPB-1/2-D7-A8-BI

Manufacturer:Festo

Category:Compressed Air Preparation Units

Product Lifecycle:Active

Product description

precision pressure regulator MS6N-LRPB-1/2-D7-A8-BI Indirectly controlled regulators, working pressure up to 12 bar. Size: 6, Series: MS, Actuator lock: Rotary knob with lock, Assembly position: Any, Design structure: Piloted precision diaphragm regulator

Product Details

  • Size
    6
  • Mounting position
    Any
  • Operating pressure
    0.1 MPa ... 1.4 MPa
  • Standard nominal flow rate
    ≥ 5000 l/min
  • Ambient temperature
    -10 °C ... 60 °C
  • Type of mounting
    Optionally: With accessories
  • Symbol
    00991973
  • Flow rate of secondary venting
    ≥ 900 l/min
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Product weight
    1000 g
  • Pneumatic connection 2
    NPT1/2-14
  • Pneumatic connection 3
    G1/4
  • Actuator lock
    Rotary knob with detent
  • Pressure gauge
    G1/8 prepared
  • Information on operating and pilot media
    Operation with oil lubrication not possible
  • Storage temperature
    -10 °C ... 60 °C
  • Note on materials
    Free of copper and PTFE RoHS-compliant
  • Series
    MS
  • Controller function
    Outlet pressure constant With secondary exhausting
  • Max. pressure hysteresis
    0.02 bar
  • Temperature of medium
    -10 °C ... 60 °C
  • Seals material
    NBR
  • Type code
    MS6-LRPB
  • Design
    Pilot-controlled precision diaphragm regulator
  • Pressure regulation range
    0.1 bar ... 12 bar
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
  • Pneumatic connection 1
    NPT1/2-14
  • Housing material
    Aluminum

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

534946 Related Documents

534946 DataSheet.pdf

Similar products from: Festo Compressed Air Preparation Units

162684 on Powermatic Associates

162684

Festo

filter regulator LFR-3/8-D-MINI-A With metal bowl guard and pressure gauge. With automatic condensate drain. Size: Mini, Series: D, Actuator lock: Rotary knob with lock, Assembly position: Vertical +/- 5°, Grade of filtration: 40 µm

2 in stock
162680 on Powermatic Associates

162680

Festo

lubricator LOE-3/8-D-MINI With metal bowl guard. Size: Mini, Series: D, Assembly position: Vertical +/- 5°, Design structure: proportional standard mist lubricator, Max. oil capacity: 45 cm3

1 in stock
530506 on Powermatic Associates

530506

Festo

fine filter MS6-LFM-1/2-BRV 1 µm filter, plastic bowl with plastic bowl guard, fully automatic condensate drain, flow direction from left to right. Series: MS, Size: 6, Design structure: Fibre filter, Grade of filtration: 1 µm, Condensate drain: fully aut

11 in stock
529609 on Powermatic Associates

529609

Festo

filter MS6-LF-1/2-CRV 5 µm filter, plastic bowl with plastic bowl guard, fully automatic condensate drain, flow direction from left to right. Size: 6, Series: MS, Assembly position: Vertical +/- 5°, Grade of filtration: 5 µm, Condensate drain: fully autom

15 in stock
531229 on Powermatic Associates

531229

Festo

filter regulator MS4N-LFR-1/4-D6-CRM-AS 7 bar maximum output pressure, 5 µm filter, with pressure gauge, lockable regulator head, plastic bowl with plastic bowl guard, manual condensate drain, direction of flow: from left to right. Size: 4, Series: MS, Ac

5 in stock
529186 on Powermatic Associates

529186

Festo

filter regulator MS6-LFR-1/2-D7-CRV-AS Maximum output pressure 12 bar, 5 µm filter, with pressure gauge, lockable regulator head, plastic bowl with plastic bowl guard, fully automatic condensate drain, flow direction from left to right. Size: 6, Series: M

9 in stock

Manufacturer warranty

534946 Festo

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 534946 with other Compressed Air Preparation Units products

Size

Mounting position

Operating pressure

Standard nominal flow rat...

Ambient temperature

Type of mounting

Symbol

Flow rate of secondary ve...

Corrosion resistance clas...

Product weight

Selected product

534946
Backordered
534946
Festo

precision pressure regulator MS6N-LRPB-1/2-D7-A8-BI Indirectly controlled regulators, working pressu...

Size6

Mounting positionAny

Operating pressure0.1 MPa ... 1.4 MPa

Standard nominal flow rate≥ 5000 l/min

Ambient temperature-10 °C ... 60 °C

Type of mountingOptionally: With accessories

Symbol00991973

Flow rate of secondary venting≥ 900 l/min

Corrosion resistance class (CRC)2 - Moderate corrosion stres...

Product weight1000 g

529186
9 in stock
529186
Festo

filter regulator MS6-LFR-1/2-D7-CRV-AS Maximum output pressure 12 bar, 5 µm filter, with pressure ga...

Size6

Mounting positionVertical +/- 5°

Operating pressure2 bar ... 12 bar

Standard nominal flow rate-

Ambient temperature-

Type of mounting-

Symbol00991587

Flow rate of secondary venting-

Corrosion resistance class (CRC)-

Product weight-

528975
2 in stock
528975
Festo

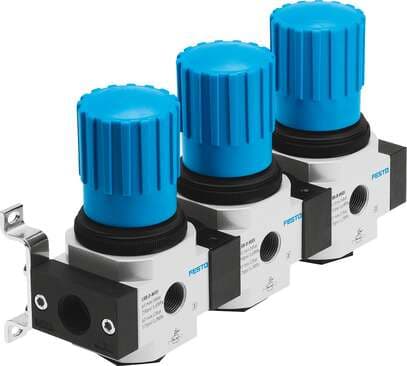

pressure regulator combination LRB-1/2-D-O-K3-MIDI With connecting kit, sub-base and mounting bracke...
