535953 Festo Directional Control Valves

535953 on Powermatic Associates
Festo

Part#:535953

Alt. Part#:MFH-5/3B-3/8-S-B-EX

Manufacturer:Festo

Category:Directional Control Valves

Product Lifecycle:Active

Product description

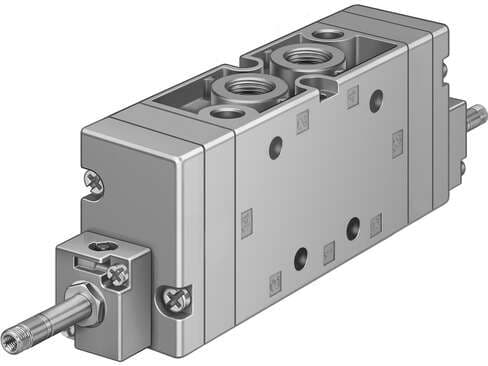

solenoid valve MFH-5/3B-3/8-S-B-EX With manual override, without solenoid coil or socket. Solenoid coil and socket should be ordered separately. Valve function: 5/3 pressurised, Type of actuation: electrical, Width: 40 mm, Standard nominal flow rate: 2600

Product Details

  • Pilot exhaust air port 82
    M5
  • Pneumatic connection 2
    G3/8
  • Seals material
    NBR
  • Width
    40 mm
  • Pneumatic working port
    G3/8
  • Degree of protection
    IP65
  • Manual override
    Non-detenting
  • Symbol
    00991031
  • Switching time off
    118 ms
  • ATEX category for dust
    II 2D
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Actuation type
    Electrical
  • Operating pressure
    -0.9 bar ... 10 bar
  • Width dimension
    41 mm
  • Mounting position
    Any
  • Max. switching frequency
    3 Hz
  • Max. positive test pulse with 0 signal
    2200 µs
  • Type of ignition protection for gas
    Ex h IIC T4 Gb
  • CE marking (see declaration of conformity)
    as per EU explosion protection directive (ATEX)
  • Temperature of medium
    -5 °C ... 40 °C
  • Pilot air port 12
    G1/8
  • Pilot exhaust air port 84
    M5
  • Note on materials
    RoHS-compliant
  • Lap
    Overlap
  • Reset method
    Mechanical spring
  • Exhaust air function
    With flow control option
  • Pilot air supply port
    External
  • Pilot pressure
    3 bar ... 10 bar
  • Changeover time
    78 ms
  • Explosive ambient temperature
    -5°C <= Ta <= +40°C
  • Pilot medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Product weight
    780 g
  • Pneumatic connection 1
    G3/8
  • Pneumatic connection 5
    G3/8
  • Design
    Piston gate valve
  • Type code
    MFH
  • Type of control
    Pilot-controlled
  • On switching time
    25 ms
  • Max. negative test pulse on 1 signal
    3700 µs
  • Type of (ignition) protection for dust
    Ex h IIIC T130°C Db
  • Explosion prevention and protection
    Zone 1 (ATEX) Zone 22 (ATEX)
  • Ambient temperature
    -5 °C ... 40 °C
  • Pilot air port 14
    G1/8
  • Pneumatic connection 3
    G3/8
  • Pneumatic connection 4
    G3/8
  • Valve function
    5/3, pressurized
  • Standard nominal flow rate
    2600 l/min
  • Nominal width
    12 mm
  • Sealing principle
    Soft
  • Flow direction
    Reversible
  • ATEX category gas
    II 2G
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Storage temperature
    -40 °C ... 60 °C
  • Electrical connection
    Via F coil, to be ordered separately
  • Type of mounting
    With through-hole
  • Housing material
    Die-cast aluminum

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
