535964 Festo Directional Control Valves
Part#:535964
Alt. Part#:JMFH-5/2-D-2-C-EX
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description

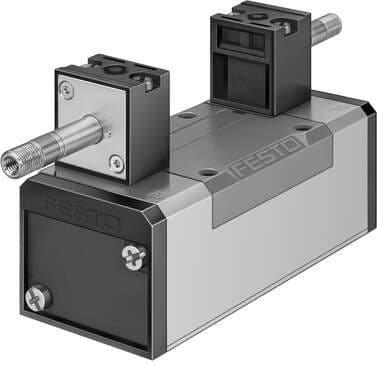

solenoid valve JMFH-5/2-D-2-C-EX With manual overrides, without solenoid coils or sockets. Solenoid coils and sockets should be ordered separately. Valve function: 5/2 bistable, Type of actuation: electrical, Width: 54 mm, Standard nominal flow rate: 2300
Product Details
- Valve function 5/2, bistable
- Standard nominal flow rate 2300 l/min
- Operating pressure 2 bar ... 10 bar
- Type code JMFH
- Flow direction Non-reversible
- Type of ignition protection for gas Ex h IIC T4 Gb
- Explosion prevention and protection Zone 1 (ATEX) Zone 22 (ATEX)
- Vibration resistance Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
- Electrical connection Via F coil, to be ordered separately
- Ambient temperature -5 °C ... 40 °C
- Pneumatic connection 3 Sub-base, size 2 as per ISO 5599-1
- Actuation type Electrical
- Pneumatic working port Sub-base, size 2 as per ISO 5599-1 G3/8
- Degree of protection IP65
- Sealing principle Soft
- Type of control Pilot-controlled
- Max. positive test pulse with 0 signal 2200 µs
- Type of (ignition) protection for dust Ex h IIIC T105°C Db
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Pilot exhaust air port 82 M5
- Pneumatic connection 1 Sub-base, size 2 as per ISO 5599-1
- Lap Overlap
- Design Piston gate valve
- Nominal width 11.5 mm
- Conforms to standard ISO 5599-1
- Pilot air supply port Internal
- ATEX category gas II 2G
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Product weight 820 g
- Pilot exhaust air port 84 M5
- Note on materials RoHS-compliant
- Width 54 mm
- Operating voltage Via solenoid coil, to be ordered separately
- Exhaust air function With flow control option
- Manual override Detenting via accessory Non-detenting
- Max. negative test pulse on 1 signal 3700 µs
- ATEX category for dust II 2D
- CE marking (see declaration of conformity) as per EU explosion protection directive (ATEX)
- Temperature of medium -10 °C ... 60 °C
- Type of mounting On sub-base With through-hole and screw
- Pneumatic connection 4 Sub-base, size 2 as per ISO 5599-1
- Width dimension 56 mm
- Mounting position Any
- ISO code 255
- Symbol 00991005
- Changeover time 18 ms
- Explosive ambient temperature -5°C <= Ta <= +40°C
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Noise level 85 dB(A)
- Pneumatic connection 2 Sub-base, size 2 as per ISO 5599-1
- Pneumatic connection 5 Sub-base, size 2 as per ISO 5599-1
- Seals material HNBR NBR
- Housing material Die-cast aluminum
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
