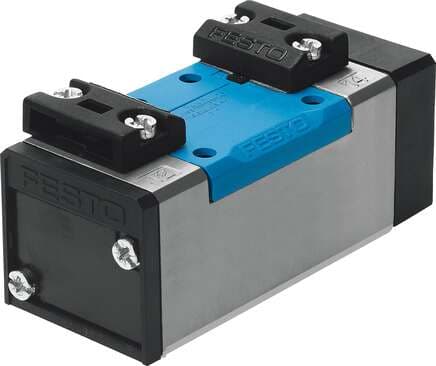

536012 Festo Directional Control Valves

Product Details

• On switching time
  13 ms
• Explosive ambient temperature
  -10°C <= Ta <= +60°C
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Product weight
  810 g
• Type code
  VL
• Width
  65 mm
• Reset method
  Mechanical spring
• Sealing principle
  Soft
• Flow direction
  Reversible
• Lap
  Overlap
• Standard nominal flow rate
  4500 l/min
• Nominal width
  14.5 mm
• Mounting position
  Any
• Symbol
  00991029
• ATEX category gas
  II 2G
• Explosion prevention and protection
  Zone 1 (ATEX) Zone 22 (ATEX)
• Shock resistance
  Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
• Ambient temperature
  -10 °C ... 60 °C
• Pneumatic connection 2
  Sub-base, size 3 as per ISO 5599-1
• Pneumatic connection 5
  Sub-base, size 3 as per ISO 5599-1
Valve function
5/2, monostable
Pneumatic working port
Sub-base, size 3 as per ISO 5599-1 G1/2
Conforms to standard
ISO 5599-1
Type of control
Direct
Type of (ignition) protection for dust
Ex h IIIC T130°C Db
Temperature of medium
-10 °C ... 60 °C
Type of mounting
On sub-base With through-hole and screw
Note on materials
RoHS-compliant
Design
Piston gate valve
Exhaust air function
With flow control option
ISO code
304
Pilot pressure
3 bar ... 16 bar
ATEX category for dust
II 2D
Vibration resistance
Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
Noise level
85 dB(A)
Pilot air port 14
Sub-base, size 3 as per ISO 5599-1
Pneumatic connection 4
Sub-base, size 3 as per ISO 5599-1
Actuation type
Pneumatic
Operating pressure
-0.9 bar ... 16 bar
Width dimension
71 mm
Manual override
None
Switching time off
43 ms
Type of ignition protection for gas
Ex h IIC T4 Gb
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
CE marking (see declaration of conformity)
as per EU explosion protection directive (ATEX)
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Pneumatic connection 1
Sub-base, size 3 as per ISO 5599-1
Housing material
Die-cast aluminum
Pneumatic connection 3
Sub-base, size 3 as per ISO 5599-1
Seals material
HNBR NBR
