537076 Festo Stop Valves (non-return)

537076 on Powermatic Associates
Festo

Part#:537076

Alt. Part#:GRLA-1/8-QS-8-MF-D

Manufacturer:Festo

Category:Stop Valves (non-return)

Product Lifecycle:Active

Product description

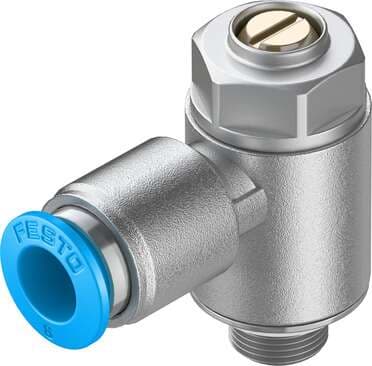

one-way flow control valve GRLA-1/8-QS-8-MF-D For exhaust air flow control, with high flow rate. Valve function: One-way flow control function, Pneumatic connection, port 1: QS-8, Pneumatic connection, port 2: G1/8, Mounting type: (* Threaded, * with ex

Product Details

  • Type of mounting
    Screw-in With external thread
  • Symbol
    00991452
  • Maritime classification
    See certificate
  • Standard nominal flow rate in flow control direction
    475 l/min
  • Operating pressure for entire temperature range
    0.2 bar ... 10 bar
  • Temperature of medium
    -10 °C ... 60 °C
  • Nominal tightening torque
    3 Nm
  • Material of adjusting screw
    Brass
  • Pneumatic connection 1
    QS-8
  • Standard nominal flow rate in non-return direction
    325 l/min ... 500 l/min
  • Standard flow rate in non-return direction at 6 -> 0 bar
    610 l/min ... 760 l/min
  • Product weight
    32 g
  • Hollow bolt material
    Wrought aluminum alloy Anodized
  • Type code
    GRLA
  • Pneumatic connection 2
    G1/8
  • Mounting position
    Any
  • Standard flow rate in flow control direction 6 -> 0 bar
    720 l/min
  • Storage temperature
    -10 °C ... 40 °C
  • Releasing ring material
    POM
  • Valve function
    Flow control non-return function
  • Ambient temperature
    -10 °C ... 60 °C
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Note on materials
    RoHS-compliant
  • Swivel joint material
    Die-cast zinc
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Tolerance for nominal tightening torque
    ± 10%
  • Seals material
    NBR

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
