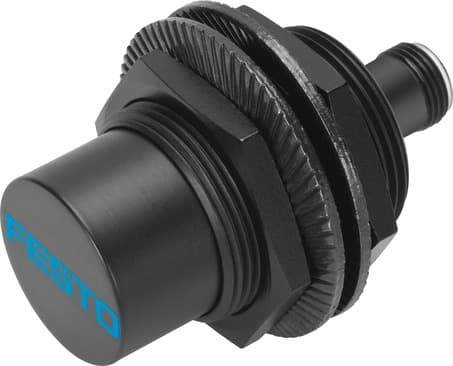

538303 Festo Proximity Sensors

Product Details

• Type code
  SIEF
• Certification
  RCM compliance mark c UL us - Listed (OL)
• Rated operating distance
  20 mm
• Switching output
  PNP
• Max. output current
  200 mA
• Idle current
  ≤ 15 mA
• Tightening torque
  75 Nm
• Design
  Round
• Ambient temperature
  -30 °C ... 85 °C
• Max. switching frequency DC
  1500 Hz
• Conforms to standard
  EN 60947-5-2
• Assured operating distance
  16.2 mm
• Switching element function
  N/O contact
• Voltage drop
  ≤ 1.8 V
• Reverse polarity protection
  for all electrical connections
• Mounting type
  Partially flush
• Product weight
  106 g
• Electrical output
  PNP
• Symbol
  00991701
• Measuring principle
  Inductive
Repetition accuracy
0.4 mm
Hysteresis
0.6 mm ... 3 mm
Residual ripple
10 %
Size
M30
Housing material
Brass PTFE-coated
Resistance to interference from magnetic fields
Magnetic direct and alternating fields
CE marking (see declaration of conformity)
As per EU EMC directive
Reduction factors
Aluminum = 1.0 Steel St 37 = 1.0
Short-circuit protection
Pulsed
Electrical connection
3-pin Plug
Degree of protection
IP67
Selection of additional sensor information
With reduction factor 1 – resistance to magnetic fields
DC operating voltage range
10 V ... 30 V
Type of mounting
With lock nut
Corrosion resistance class (CRC)
0 - No corrosion stress
Switching status indication
LED yellow
Selection of sensor version
WA resistant to welding splatter
