Part#:546151

Alt. Part#:VZWM-L-M22C-G114-F5

Manufacturer:Festo

Category:Process & Media Valves

Product Lifecycle:Active

Product description

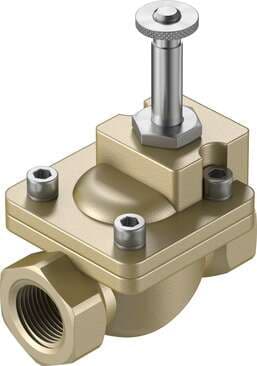

solenoid valve VZWM-L-M22C-G114-F5 Servo-controlled, with diaphragm, G11/4" connection. Design structure: (* Diaphragm valve, * Servo controlled), Type of actuation: electrical, Sealing principle: soft, Assembly position: Preferably upright, Mounting type

Product Details

  • Type code
    VZWM
  • Electrical connection
    Solenoid coil type MH-... , coil can be ordered as an accessory
  • Flow direction
    Non-reversible
  • Type of control
    Pilot-controlled
  • Temperature of liquid media
    5 °C ... 50 °C
  • Response time "on" for liquid media
    1400 ms
  • Housing material
    Brass
  • Armature tube material
    High-alloy steel
  • Corrosion resistance class (CRC)
    1 - Low corrosion stress
  • Design
    Diaphragm valve servo-controlled
  • Mounting position
    Preferably upright
  • Nominal width
    40 mm
  • Medium pressure of liquid media
    0.7 bar ... 6 bar
  • Symbol
    00995681
  • Flow rate Kv
    21.3 m³/h
  • b-value
    0.6
  • Product weight
    2850 g
  • Valve function
    2/2, closed, monostable
  • Differential pressure
    0.7 bar
  • Max. viscosity
    22 mm²/s
  • On switching time
    26 ms
  • C value
    75 l/sbar
  • Seals material
    NBR
  • Max. tightening torque for connecting thread
    450 Nm
  • Actuation type
    Electrical
  • Fitting connection
    G1 1/4
  • Medium
    Compressed air as per ISO 8573-1:2010 [7:4:4] Neutral liquids
  • Ambient temperature
    -10 °C ... 60 °C
  • Switching time off
    20 ms
  • Material number of housing
    2.0402
  • CE marking (see declaration of conformity)
    as per EU pressure equipment directive
  • Max. tightening torque for coil fastening
    2 Nm
  • Sealing principle
    Soft
  • Type of mounting
    Line installation
  • Medium pressure of gaseous media
    0.7 bar ... 10 bar
  • Temperature of medium
    -10 °C ... 60 °C
  • Standard nominal flow rate
    24000 l/min
  • Response time "off" for liquid media
    1900 ms
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Max. torque for cover screw
    30 Nm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
