546155 Festo Process & Media Valves
Part#:546155
Alt. Part#:VZWM-L-M22C-N38-F4
Manufacturer:Festo
Category:Process & Media Valves
Product Lifecycle:Active
Product description

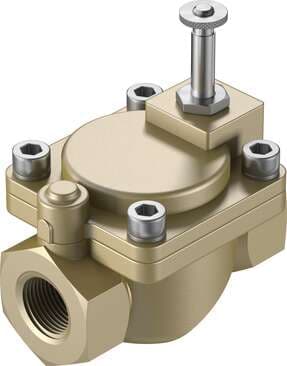

solenoid valve VZWM-L-M22C-N38-F4 Servo-controlled, with diaphragm, NPT3/8" connection. Design structure: (* Diaphragm valve, * Servo controlled), Type of actuation: electrical, Sealing principle: soft, Assembly position: Preferably upright, Mounting type
Product Details
- Type of mounting Line installation
- Differential pressure 0.5 bar
- Max. viscosity 22 mm²/s
- On switching time 8 ms
- Flow rate Kv 2 m³/h
- Seals material NBR
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Sealing principle Soft
- Nominal width 13.5 mm
- Medium pressure of liquid media 0.5 bar ... 6 bar
- Medium pressure of gaseous media 0.5 bar ... 10 bar
- Temperature of medium -10 °C ... 60 °C
- C value 8.8 l/sbar
- Armature tube material High-alloy steel
- Design Diaphragm valve servo-controlled
- Electrical connection Solenoid coil type MD-... , coil can be ordered as an accessory
- Medium Compressed air as per ISO 8573-1:2010 [7:4:4] Neutral liquids
- Type of control Pilot-controlled
- Standard nominal flow rate 2100 l/min
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Max. tightening torque for coil fastening 0.5 Nm
- Type code VZWM
- Mounting position Preferably upright
- Valve function 2/2, closed, monostable
- Symbol 00995681
- Ambient temperature -10 °C ... 60 °C
- Switching time off 10 ms
- b-value 0.35
- Material number of housing 2.0402
- Product weight 450 g
- Max. tightening torque for connecting thread 60 Nm
- Actuation type Electrical
- Fitting connection 3/8 NPT
- Flow direction Non-reversible
- Temperature of liquid media 5 °C ... 50 °C
- Response time "on" for liquid media 110 ms
- Response time "off" for liquid media 210 ms
- Housing material Brass
- Max. torque for cover screw 20 Nm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
