546552 Festo Actuator Accessories

Name: 546552
Brand: Festo

Part#:546552

Alt. Part#:SG-UNF10-32-B

Manufacturer:Festo

Category:Actuator Accessories

Product Lifecycle:Active

Product description

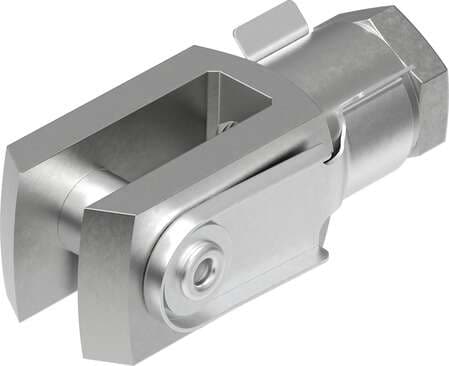

rod clevis SG-UNF10-32-B With hexagon nut, for swivel cylinder mounting (piston-rod side). Size: UNF10-32, Based on the standard: (* DIN 71752, * ISO 8140), Corrosion resistance classification CRC: 1 - Low corrosion stress, Ambient temperature: -40 - 150

Product Details

Based on norm
DIN 71752 ISO 8140
Note on materials
Free of copper and PTFE RoHS-compliant
Corrosion resistance class (CRC)
1 - Low corrosion stress
Nut material
Steel Galvanized
Type code
SG
Ambient temperature
-40 °C ... 150 °C
Bolt material
Steel Galvanized
Size
UNF10-32
Product weight
9.979 g
Clevis material
Steel Galvanized

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
