546572 Festo Actuator Accessories

Name: 546572
Brand: Festo

Part#:546572

Alt. Part#:SZF-2"

Manufacturer:Festo

Category:Actuator Accessories

Product Lifecycle:Active

Product description

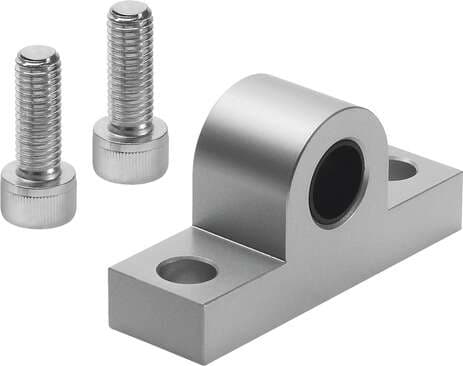

swivel flange SZF-2" for flat cylinder DZF. Size: 2", Assembly position: Any, Corrosion resistance classification CRC: 2 - Moderate corrosion stress, Ambient temperature: -40 - 90 °C, Product weight: 6,7 oz

Product Details

Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Note on materials
RoHS-compliant
Type code
SZF
Mounting material
High-alloy stainless steel
Mounting position
Any
Material of bearing
Polymer
Size
2"
Ambient temperature
-40 °C ... 90 °C
Material of screws
Steel, galvanized
Product weight
189.945 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
