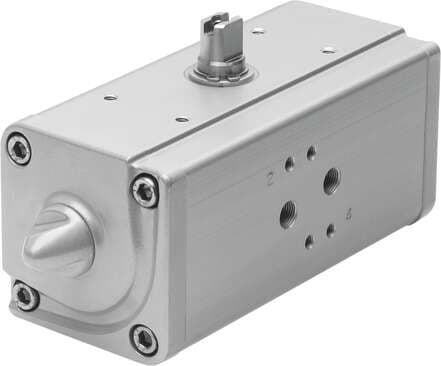

549667 Festo Quarter Turn Actuators
Part#:549667
Alt. Part#:DAPS-0720-090-R-F1012
Manufacturer:Festo
Category:Quarter Turn Actuators
Product Lifecycle:Active
Product description
semi-rotary drive DAPS-0720-090-R-F1012 Double-acting, air connection as per VDI/VDE 3845, Namur valves can be directly flange-mounted Size of actuator: 0720, Flange hole pattern: (* F10, * F12), Swivel angle: 90 deg, End-position adjustment range at 0°:
Product Details
- Size of valve actuator 0720
- Depth shaft connection 29.5 mm
- Standard connection for valve ISO 5211
- Cushioning No cushioning
- Safety integrity level (SIL) Up to SIL 2 high demand mode Up to SIL 2 low demand mode
- Ambient temperature -20 °C ... 80 °C
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Torque at nominal operating pressure and 0° swivel angle 720 Nm
- End-position adjusting range at 0° -1 deg ... 9 deg
- Mode of operation Double-acting
- Closing direction Clockwise closing
- Operating pressure 1 bar ... 8.4 bar
- Explosive ambient temperature -20°C <= Ta <= +60°C
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class (CRC) 3 - High corrosion stress
- Swivel angle 90 deg
- Design Scotch yoke system
- Symbol 00991265
- Nominal operating pressure 5.6 bar
- Type of (ignition) protection for dust Ex h IIIC T85°C...T200°C Db X
- Torque at nominal operating pressure and 90° swivel angle 540 Nm
- Product weight 12000 g
- Shaft material High-alloy steel
- Flange hole pattern F10 F12
- Type code DAPS
- Mounting position Any
- Valve connection conforms to standard VDI/VDE 3845 (NAMUR)
- ATEX category for dust II 2D
- Type of ignition protection for gas Ex h IIC T6...T3 Gb X
- CE marking (see declaration of conformity) as per EU explosion protection directive (ATEX)
- Note about the torque The actuator's operating torque must not be higher than the maximum permissible torque listed in ISO 5211, based on the size of the mounting flange and the coupling.
- Pneumatic connection G1/4
- Housing material Wrought aluminum alloy
- Position sensing None
- ATEX category gas II 2G
- Explosion prevention and protection Zone 1 (ATEX) Zone 22 (ATEX)
- Torque at nominal operating pressure and 50° swivel angle 360 Nm
- Shaft connection T27
- Cover material Wrought aluminum alloy
- Air consumption at 6 bar per cycle 0°-nominal swivel angle-0° 24.5 l
- Seals material FPM PUR
- Material of screws High-alloy steel
- Note on materials RoHS-compliant
- Material number for shaft 1.4305
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
