553331 Festo Actuator Accessories

Name: 553331
Brand: Festo

Part#:553331

Alt. Part#:DADB-V6-63-S10-50

Manufacturer:Festo

Category:Actuator Accessories

Product Lifecycle:Active

Product description

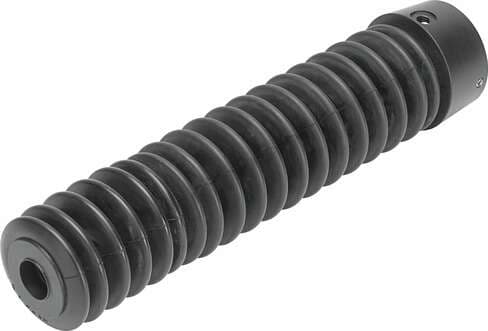

bellows kit DADB-V6-63-S10-50 For standard cylinders to ISO 15552 Outside diameter: 57 mm, Size: 63, Stroke range: 10 - 50 mm, Piston rod extension: 28 mm, Design: Round

Product Details

Ambient temperature
-10 °C ... 80 °C
Product weight
69 g
Bellows material
NBR
Outside diameter
57 mm
Corrosion resistance class (CRC)
3 - High corrosion stress
Pneumatic connection
G1/4
Piston rod extension
28 mm
Design
Bellows kit with ducted exhaust air
Media resistance
Stäube Petrol
Adaption parts material
PA-reinforced
Stroke range
10 mm ... 50 mm
Mounting position
Any
Degree of protection
IP54
Note on materials
RoHS-compliant
Threaded pin material
High-alloy stainless steel
Size
63
Type code
DADB
Type of mounting
Push-on With threaded pin
Seals material
NBR

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
