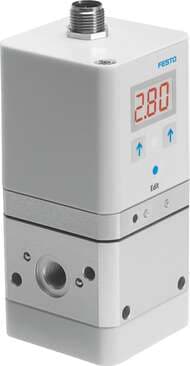

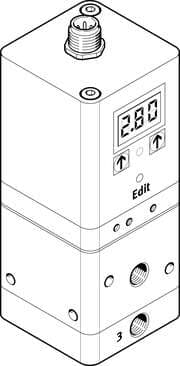

557773 Festo Pneumatic Components
Part#:557773
Alt. Part#:VPPE-3-1-1/8-10-010-E1
Manufacturer:Festo
Category:Pneumatic Components
Product Lifecycle:Active
Sep 6, 2025
Product description
proportional pressure regulator VPPE-3-1-1/8-10-010-E1 Nominal diameter, pressurisation: 5 mm, Nominal diameter, exhaust: 2,5 mm, Type of actuation: electrical, Sealing principle: soft, Assembly position: (* Any, * Preferably upright)
Product Details
- KC characters KC EMC
- Reproducibility 0.5 %FS
- Type code VPPE
- Nominal width pressurization 5 mm
- Linearity 1 %FS
- Exhaust nominal width 2.5 mm
- Actuation type Electrical
- Short-circuit protection For all electrical connections
- Reverse polarity protection for all electrical connections
- Valve function 3-way proportional pressure control valve
- Max. pressure hysteresis 0.05 bar
- Switching output PNP
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Electrical connection 5-pin Plug
- Pressure regulation range 0.1 bar ... 10 bar
- DC operating voltage range 21.6 V ... 26.4 V
- Max. electrical power consumption 4.2 W
- Analog input signal range 0 - 10 V
- Temperature of medium 10 °C ... 50 °C
- Ambient temperature 0 °C ... 60 °C
- Pneumatic connection 3 G1/8
- Hysteresis 0.5 %FS
- Sealing principle Soft
- Design Pilot-controlled diaphragm regulator
- Reset method Mechanical spring
- Safety instructions VPPE safety position: if the supply cable breaks, the outlet pressure is maintained in uncontrolled form.
- Inlet pressure 1 6 bar ... 11 bar
- Residual ripple 10 %
- Information on operating and pilot media Operation with oil lubrication not possible
- Temperature coefficient 0.04 %/K
- Pneumatic connection 2 G1/8
- Housing material Wrought aluminum alloy Anodized
- Overall accuracy 1.25 %FS
- Duty cycle 100%
- CE marking (see declaration of conformity) As per EU EMC directive
- Certification RCM compliance mark c UL us - Listed (OL)
- Pneumatic connection 1 G1/8
- Note on materials Free of copper and PTFE RoHS-compliant
- Mounting position Any Preferably upright
- Symbol 00995303
- Type of control Pilot-controlled
- Display type LED display 3-digit
- Standard nominal flow rate 1250 l/min
- Max. current consumption 160 mA
- Analog output signal range 0 - 10 V
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Degree of protection IP65
- Product weight 390 g
- Type of mounting With through-hole
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
