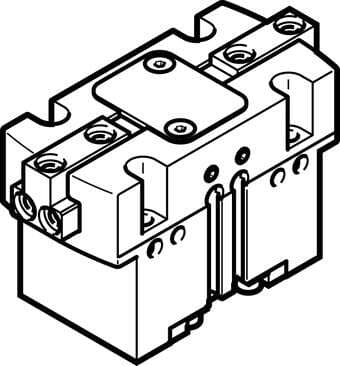

560208 Festo Pneumatic Grippers

Product Details

• Max. gripper jaw backlash Sz
  ≤ 0.02 mm
• Type code
  HGPT
• Gripper function
  Parallel
• Size
  25
• Rotational symmetry
  ≤ 0.2 mm
• Design
  Inclined plane Positively driven motion sequence
• Min. opening time at 6 bar
  24 ms
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Stroke per gripper jaw
  3 mm
• Max. gripper jaw angular play ax, ay
  ≤ 0.1 deg
• Number of gripper jaws
  2
• Gripping force backup
  On opening
• Operating pressure
  4 bar ... 8 bar
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Ambient temperature
  5 °C ... 60 °C
• Maximum torque on gripper jaw, Mz static
  35 Nm
• Pneumatic connection
  M5
• Mode of operation
  Double-acting
• Position sensing
  For proximity sensor
• Max. operating frequency of pneumatic gripper
  ≤ 3 Hz
Maximum torque on gripper jaw, Mx static
50 Nm
Relubrication interval for guidance elements
5 MioCyc
Note on materials
Free of copper and PTFE RoHS-compliant
Gripper jaw material
Steel Hardened
Max. interchangeability
≤ 0.2 mm
Pneumatic gripper repetition accuracy
≤ 0.04 mm
Mounting position
Any
Operating pressure for sealing air
0 bar ... 0.5 bar
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Maximum force on gripper jaw Fz, static
1200 N
Type of mounting
Optionally: With internal thread and dowel pin
Housing material
Aluminum Anodized
Symbol
00995947
Min. closing time at 6 bar
45 ms
Degree of protection
IP40
Maximum torque on gripper jaw, My static
45 Nm
Product weight
353 g
Sealing air pneumatic connection
M5
Mass moment of inertia
1.479 kgcm²
Max. mass per external gripper finger
110 g
Cover cap material
High-alloy stainless steel
