564843 Festo Stop Valves (non-return)

564843 on Powermatic Associates
Festo

Part#:564843

Alt. Part#:GRLA-1/4-QB-5/32-U

Manufacturer:Festo

Category:Stop Valves (non-return)

Product Lifecycle:Active

Product description

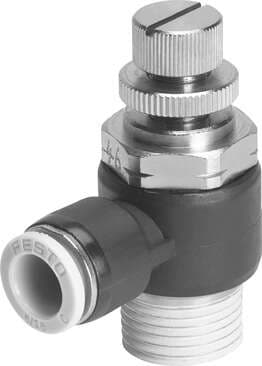

one-way flow control valve GRLA-1/4-QB-5/32-U Valve function: One-way flow control function for exhaust air, Pneumatic connection, port 1: QB-5/32, Pneumatic connection, port 2: 1/4 NPT, Type of actuation: manual, Adjusting element: Slotted head screw

Product Details

  • Valve function
    Exhaust air flow control non-return function
  • Actuation type
    Manual
  • Pneumatic connection 2
    1/4 NPT
  • Adjusting element
    Slotted screw
  • Standard nominal flow rate in non-return direction
    1175.847 l/min ... 1557.203 l/min
  • Mounting position
    Any
  • Standard flow rate in non-return direction at 6 -> 0 bar
    1995.763 l/min ... 2084.746 l/min
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Max. tightening torque
    12.067 Nm
  • Hollow bolt material
    Brass Nickel-plated
  • Material of adjusting screw
    Brass Nickel-plated
  • Type of mounting
    Screw-in With external thread
  • Ambient temperature
    0 °C ... 60 °C
  • Symbol
    00991452
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Product weight
    34.02 g
  • Material of screwed trunnion
    Brass Nickel-plated
  • Knurled head material
    Brass Nickel-plated
  • Type code
    GRLA
  • Pneumatic connection 1
    QB-5/32
  • Standard nominal flow rate in flow control direction
    1525.42 l/min
  • Standard flow rate in flow control direction 6 -> 0 bar
    1995.8 l/min
  • Operating pressure for entire temperature range
    -0.951 bar ... 7.998 bar
  • Temperature of medium
    0 °C ... 60 °C
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Seals material
    NBR
  • Releasing ring material
    POM
  • Swivel joint material
    PBT-reinforced

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
