564846 Festo Stop Valves (non-return)

564846 on Powermatic Associates
Festo

Part#:564846

Alt. Part#:GRLA-1/2-QB-3/8-U

Manufacturer:Festo

Category:Stop Valves (non-return)

Product Lifecycle:Active

Product description

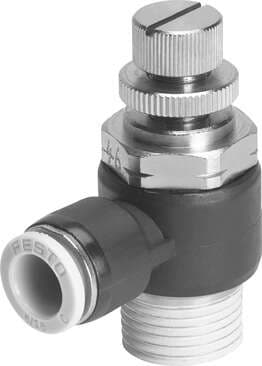

one-way flow control valve GRLA-1/2-QB-3/8-U Valve function: One-way flow control function for exhaust air, Pneumatic connection, port 1: QB-3/8, Pneumatic connection, port 2: 1/2 NPT, Type of actuation: manual, Adjusting element: Slotted head screw

Product Details

  • Pneumatic connection 2
    1/2 NPT
  • Actuation type
    Manual
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Material of screwed trunnion
    Brass Nickel-plated
  • Material of adjusting screw
    Brass Nickel-plated
  • Ambient temperature
    0 °C ... 60 °C
  • Operating pressure for entire temperature range
    -0.951 bar ... 7.998 bar
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Seals material
    NBR
  • Knurled head material
    Brass Nickel-plated
  • Type code
    GRLA
  • Adjusting element
    Slotted screw
  • Standard nominal flow rate in non-return direction
    4093.22 l/min ... 5427.966 l/min
  • Symbol
    00991452
  • Standard flow rate in non-return direction at 6 -> 0 bar
    7588.983 l/min ... 7894.068 l/min
  • Product weight
    109.148 g
  • Hollow bolt material
    Brass Nickel-plated
  • Valve function
    Exhaust air flow control non-return function
  • Type of mounting
    Screw-in With external thread
  • Mounting position
    Any
  • Temperature of medium
    0 °C ... 60 °C
  • Releasing ring material
    POM
  • Pneumatic connection 1
    QB-3/8
  • Standard nominal flow rate in flow control direction
    5313.56 l/min
  • Standard flow rate in flow control direction 6 -> 0 bar
    7589 l/min
  • Max. tightening torque
    28.065 Nm
  • Note on materials
    Contains paint-wetting impairment substances RoHS-compliant
  • Swivel joint material
    PBT-reinforced

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
