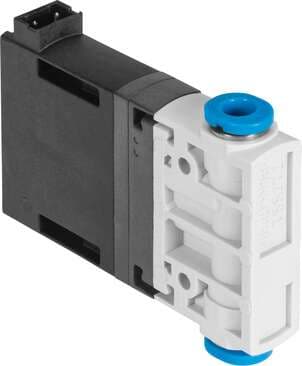

567793 Festo Directional Control Valves

Product Details

• Standard nominal flow rate
  160 l/min
• Degree of protection
  IP40
• Type of control
  Direct
• Symbol
  00992259
• Operating pressure
  0.5 bar ... 4 bar
• Pneumatic working port
  QS-6
• Width dimension
  9.5 mm
• Sealing principle
  Hard
• Max. switching frequency
  500 Hz
• Switching time on at 4 bar and 12 V in new condition
  1.3 ms
• Switching time off at 0.5 bar and 24 V in new condition
  0.5 ms
• Note regarding operating voltage
  Operation only with connecting cable MHJ9-KMH-...
• Restricted ambient and media temperature
  Depending on the switching frequency (see diagram)
• Product weight
  30 g
• Seals material
  HNBR
• Actuation type
  Electrical
• Operating voltage
  24V DC
• Type code
  MHJ9
• Information on operation
  Do not operate without flow. For block assembly with flow rate at max. ambient temperature 45 °C.
• C value
  0.66 l/sbar
Switching time off at 4 bar and 24 V in new condition
0.4 ms
Switching time off at 4 bar and 12 V in new condition
0.5 ms
Coil resistance
2.5 Ohm
Storage temperature
-20 °C ... 50 °C
Ambient temperature
-5 °C ... 60 °C
Note on materials
RoHS-compliant
Valve function
2/2, closed, monostable
Width
9 mm
Reset method
Pneumatic spring
Manual override
None
Flow direction
Non-reversible
Switching time off at 4 bar and 48 V in new condition
0.4 ms
DC operating voltage range
12 V ... 53 V
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Permissible solenoid surface temperature
120 °C
Housing material
PA-reinforced
Design
Poppet valve without return spring
Mounting position
Any
b-value
0.36
Switching time on at 4 bar and 48 V in new condition
0.8 ms
Tolerance for switching time off
+15 %/-25 %
Tolerance for ON switching time
+/-15 %
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Type of mounting
Optionally: With through-hole
Pneumatic connection 2
QS-6
Switching time on at 4 bar and 24 V in new condition
1 ms
Switching time on at 0.5 bar and 24 V in new condition
0.8 ms
Duty cycle
100%
Information on operating and pilot media
Operation with oil lubrication not possible
Temperature of medium
-5 °C ... 60 °C
Pneumatic connection 1
QS-6
Electrical connection
2-pin KMH plug
Material of screws
Steel
