570580 Festo Pneumatic Actuators

570580 on Powermatic Associates
Festo

Part#:570580

Alt. Part#:DFM-N-32-40-B-P-A-GF

Manufacturer:Festo

Category:Pneumatic Actuators

Product Lifecycle:Active

Product description

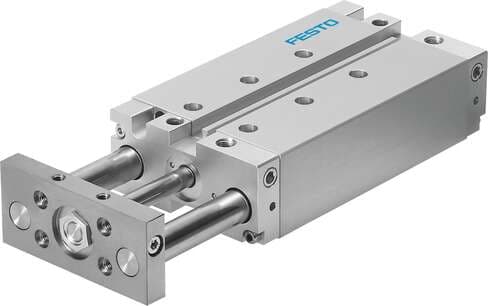

guided drive DFM-N-32-40-B-P-A-GF With integrated guide. Stroke: 40 mm, Piston diameter: 32 mm, Operating mode of drive unit: Yoke, Cushioning: P: Flexible cushioning rings/plates at both ends, Assembly position: Any

Product Details

  • Drive unit operating mode
    Yoke
  • Stroke
    40 mm
  • Cushioning
    Elastic cushioning rings/pads at both ends
  • Design
    Guide
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Theoretical force at 6 bar, retracting
    415 N
  • Note on materials
    RoHS-compliant
  • Housing material
    Wrought aluminum alloy
  • Type code
    DFM-B
  • Guide
    Sliding guide
  • Position sensing
    For proximity sensor
  • Alternative connections
    See product drawing
  • Cover material
    Wrought aluminum alloy
  • Piston rod material
    High-alloy stainless steel
  • Mounting position
    Any
  • Mode of operation
    Double-acting
  • Theoretical force at 6 bar, advancing
    482 N
  • Pneumatic connection
    1/8 NPT
  • Piston diameter
    32 mm
  • Operating pressure
    1.5 bar ... 10 bar
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Seals material
    NBR
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Ambient temperature
    -20 °C ... 80 °C

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
