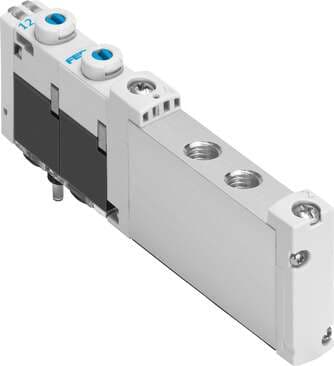

573398 Festo Directional Control Valves

Product Details

• Type code
  VUVG
• Symbol
  00992905
• Max. switching frequency
  3 Hz
• Design
  Piston gate valve
• Lap
  Overlap
• Valve size
  10 mm
• Degree of protection
  IP65 IP67
• Certification
  c CSA us (OL) c UL us - Recognized (OL)
• Duty cycle
  100%
• Max. negative test pulse on 1 signal
  3000 µs
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Temperature of medium
  -5 °C ... 60 °C
• Pneumatic connection 2
  M7
• Operating pressure
  1.5 bar ... 10 bar
• Actuation type
  Electrical
• Operating voltage
  24V DC
• Mounting position
  Any
• Valve function
  2x3/2, closed, monostable
• Pilot pressure MPa
  0.15 MPa ... 0.8 MPa
• Pneumatic working port
  M7
Exhaust air function
With flow control option
Pilot air supply port
External
Switching time off
20 ms
On switching time
8 ms
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Product weight
59 g
Housing material
Wrought aluminum alloy
Standard nominal flow rate
160 l/min
Reset method
Pneumatic spring
Sealing principle
Soft
Type of control
Pilot-controlled
Signal status display
LED
Max. positive test pulse with 0 signal
1600 µs
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Type of mounting
On terminal strip
Seals material
HNBR NBR
Manual override
Detenting Non-detenting
Pilot pressure
1.5 bar ... 8 bar
Permissible voltage fluctuations
+/- 10 %
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Ambient temperature
-5 °C ... 60 °C
Note on materials
RoHS-compliant
Coil characteristics
22 V DC: 1.0 W
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Electrical connection
Via sub-base
Pneumatic connection 4
M7
