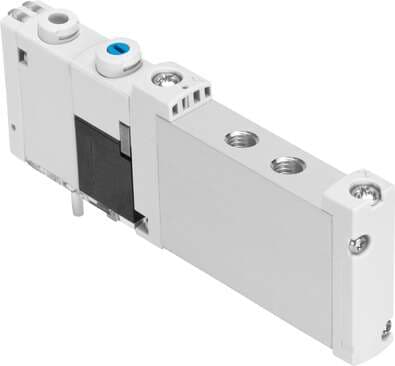

573405 Festo Directional Control Valves

Product Details

• Lap
  Overlap
• Standard nominal flow rate
  290 l/min
• Reset method
  Mechanical spring
• Operating voltage
  24V DC
• Degree of protection
  IP65 IP67
• Sealing principle
  Soft
• Symbol
  00991025
• Max. switching frequency
  3 Hz
• Max. negative test pulse on 1 signal
  3000 µs
• Max. positive test pulse with 0 signal
  1600 µs
• Pilot medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Ambient temperature
  -5 °C ... 60 °C
• Product weight
  53 g
• Pneumatic connection 2
  M7
• Valve function
  5/2, monostable
• Actuation type
  Electrical
• Pneumatic working port
  M7
• Certification
  c CSA us (OL) c UL us - Recognized (OL)
• Manual override
  Detenting Non-detenting
• Flow direction
  Reversible
On switching time
12 ms
Coil characteristics
22 V DC: 1.0 W
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Type of mounting
On terminal strip
Operating pressure
-0.9 bar ... 8 bar
Valve size
10 mm
Mounting position
Any
Exhaust air function
With flow control option
Signal status display
LED
Switching time off
30 ms
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Temperature of medium
-5 °C ... 60 °C
Seals material
HNBR NBR
Pilot pressure MPa
0.3 MPa ... 0.8 MPa
Design
Piston gate valve
Type code
VUVG
Pilot air supply port
External
Duty cycle
100%
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Pneumatic connection 4
M7
Housing material
Wrought aluminum alloy
Type of control
Pilot-controlled
Pilot pressure
3 bar ... 8 bar
Permissible voltage fluctuations
+/- 10 %
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Electrical connection
Via sub-base
Note on materials
RoHS-compliant
