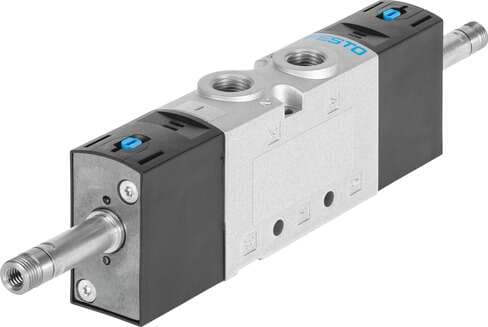

575706 Festo Directional Control Valves

Product Details

• Actuation type
  Electrical
• Design
  Piston gate valve
• Exhaust air function
  With flow control option
• Pilot air supply port
  Internal
• b-value
  0.35
• Symbol
  00991013
• Temperature of medium
  -10 °C ... 60 °C
• Pilot exhaust air port 82
  10-32 UNF-2B
• Type of mounting
  Optionally: With through-hole
• Note on materials
  RoHS-compliant
• Valve function
  5/2, bistable
• Valve size
  21 mm
• Nominal width
  5.7 mm
• Manual override
  Detenting Non-detenting
• Max. positive test pulse with 0 signal
  1900 µs
• Information on operating and pilot media
  Operation with oil lubrication possible (required for further use)
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Pilot medium
  Compressed air as per ISO 8573-1:2010 [7:4:4]
• Pneumatic connection 2
  1/8 NPT
• Housing material
  Die-cast aluminum Painted
Material of screws
Steel, galvanized
Pneumatic working port
1/8 NPT
Sealing principle
Soft
Type of control
Pilot-controlled
C value
2.9 l/sbar
Max. negative test pulse on 1 signal
2700 µs
Vibration resistance
Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Venting hole connection
Not ducted
Pneumatic connection 1
1/8 NPT
Pneumatic connection 4
1/8 NPT
Piston slide material
Wrought aluminum alloy
Lap
Overlap
Standard nominal flow rate
700 l/min
Certification
c UL us - Recognized (OL)
Type code
VUVS
Changeover time
10 ms
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Shock resistance
Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Ambient temperature
-10 °C ... 60 °C
Pilot exhaust air port 84
10-32 UNF-2B
Pneumatic connection 5
1/8 NPT
Seals material
HNBR NBR
Operating pressure
1.5 bar ... 10 bar
Mounting position
Any
Flow direction
Non-reversible
Product weight
225 g
Pneumatic connection 3
1/8 NPT
