576489 Festo Pneumatic Valves Accessories

576489 on Powermatic Associates
Festo

Part#:576489

Alt. Part#:VABM-B10-20EEE-G38-2

Manufacturer:Festo

Category:Pneumatic Valves Accessories

Product Lifecycle:Active

Product description

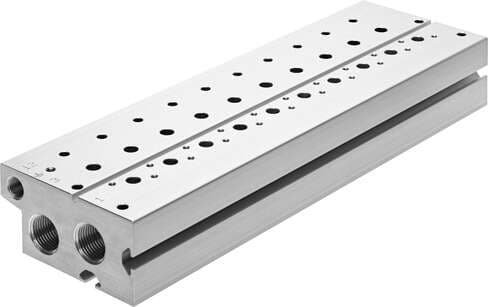

manifold block VABM-B10-20EEE-G38-2 Grid dimension: 22 mm, Assembly position: Any, Max. number of valve positions: 2, Corrosion resistance classification CRC: 2 - Moderate corrosion stress, Product weight: 492 g

Product Details

  • Pilot air port 12
    G1/8
  • Pneumatic connection 3
    G3/8
  • Mounting position
    Any
  • Type of mounting
    With through-hole
  • Note on materials
    RoHS-compliant
  • Pneumatic connection 5
    G3/8
  • Type code
    VABM
  • Pilot air port 14
    G1/8
  • Width dimension
    22 mm
  • Product weight
    492 g
  • Pneumatic connection 1
    G3/8
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Max. no. of valve positions
    2
  • Manifold rail material
    Wrought aluminum alloy

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
