577316 Festo Directional Control Valves
Part#:577316
Alt. Part#:VUVG-L10-M52-RT-M5-1H2L-W1
Manufacturer:Festo
Category:Directional Control Valves
Product Lifecycle:Active
Product description

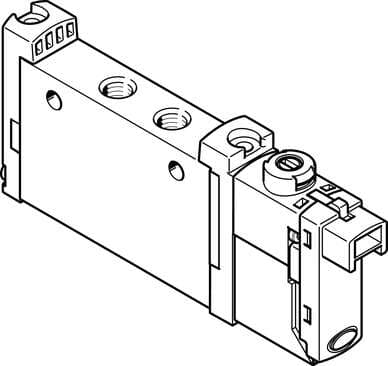

solenoid valve VUVG-L10-M52-RT-M5-1H2L-W1 Valve function: 5/2 monostable, Type of actuation: electrical, Valve size: 10 mm, Standard nominal flow rate: 220 l/min, Operating pressure: 2,5 - 8 bar
Product Details
- Operating pressure 2.5 bar ... 8 bar
- Valve function 5/2, monostable
- Actuation type Electrical
- Reset method Mechanical spring Pneumatic spring
- Exhaust air function With flow control option
- Type of control Pilot-controlled
- Switching time off 17 ms
- Pilot pressure MPa 0.25 MPa ... 0.8 MPa
- Standard nominal flow rate 220 l/min
- Degree of protection IP40 With plug socket
- Type code VUVG
- Manual override Detenting Covered
- Suitability for vacuum no
- Duty cycle 100%
- Coil characteristics 24 V DC: 1.0 W
- Restricted ambient and media temperature -5 - 50 °C Without holding power reduction
- Ambient temperature -5 °C ... 60 °C
- Pneumatic connection 1 M5
- Pneumatic connection 4 M5
- Housing material Wrought aluminum alloy
- Valve size 10 mm
- Nominal width 3.2 mm
- Pilot air supply port Internal
- Note on materials RoHS-compliant
- Lap Overlap
- Pneumatic working port M5
- Certification RCM compliance mark c UL us - Recognized (OL)
- Mounting position Any
- Pilot pressure 2.5 bar ... 8 bar
- Permissible voltage fluctuations +/- 10 %
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Temperature of medium -5 °C ... 60 °C
- Type of mounting Optionally: With through-hole
- Pneumatic connection 2 M5
- Seals material HNBR NBR
- Design Piston gate valve
- Operating voltage 24V DC
- Sealing principle Soft
- Symbol 00992233
- On switching time 7 ms
- Max. negative test pulse on 1 signal 900 µs
- Vibration resistance Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Product weight 45 g
- Pneumatic connection 5 M5
- Max. positive test pulse with 0 signal 700 µs
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Electrical connection Via electrical sub-base
- Pneumatic connection 3 M5
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
