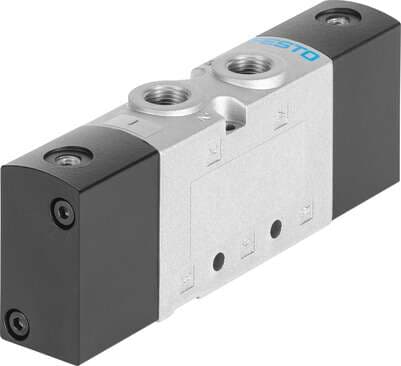

577526 Festo Directional Control Valves

577526 on Powermatic Associates
Festo

Part#:577526

Alt. Part#:VUWS-LT20-M32U-M-G18

Manufacturer:Festo

Category:Directional Control Valves

Product Lifecycle:Active

Product description

pneumatic valve VUWS-LT20-M32U-M-G18 Valve function: 3/2 open, monostable, Type of actuation: pneumatic, Valve size: 21 mm, Standard nominal flow rate: 600 l/min, Operating pressure: -0,9 - 10 bar

Product Details

  • Flow direction
    Non-reversible
  • On switching time
    6 ms
  • Reset method
    Mechanical spring
  • Exhaust air function
    With flow control option
  • Valve function
    3/2, open, monostable
  • Valve size
    21 mm
  • Design
    Plate seat
  • Sealing principle
    Soft
  • Pilot air supply port
    Internal
  • Explosion prevention and protection
    Observe the information on the certificate Zone 22 (ATEX)
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Actuation type
    Pneumatic
  • Pneumatic working port
    G1/8
  • Nominal width
    5.2 mm
  • Type of control
    Direct
  • Switching time off
    18 ms
  • Vibration resistance
    Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
  • Ambient temperature
    -5 °C ... 60 °C
  • Pneumatic connection 2
    G1/8
  • Lap
    Underlap
  • Standard nominal flow rate
    600 l/min
  • Certification
    c UL us - Recognized (OL)
  • Manual override
    None
  • Pilot pressure
    1.5 bar ... 10 bar
  • Information on operating and pilot media
    Operation with oil lubrication possible (required for further use)
  • Pilot medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Pilot air port 10
    M5
  • Note on materials
    RoHS-compliant
  • Material of screws
    Steel, galvanized
  • Operating pressure
    -0.9 bar ... 10 bar
  • Type code
    VUWS
  • Mounting position
    Any
  • Symbol
    00995403
  • Operating medium
    Compressed air as per ISO 8573-1:2010 [7:4:4]
  • Temperature of medium
    -5 °C ... 60 °C
  • Venting hole connection
    Not ducted
  • Seals material
    HNBR TPE-U(PU)
  • Shock resistance
    Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
  • Product weight
    119 g
  • Pneumatic connection 3
    G1/8
  • Type of mounting
    Optionally: With through-hole
  • Pneumatic connection 1
    G1/8
  • Housing material
    Die-cast aluminum Painted

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
