8026292 Festo Pneumatic Valves Accessories

8026292 on Powermatic Associates
Festo

Part#:8026292

Alt. Part#:VABM-B10-25E-N12-6-P3

Manufacturer:Festo

Category:Pneumatic Valves Accessories

Product Lifecycle:Active

Product description

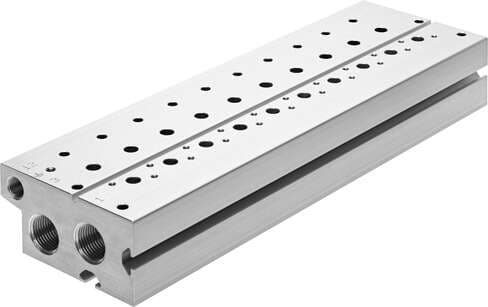

manifold block VABM-B10-25E-N12-6-P3 Grid dimension: 27,5 mm, Assembly position: Any, Max. number of valve positions: 6, Corrosion resistance classification CRC: 2 - Moderate corrosion stress, Product weight: 1662 g

Product Details

  • Max. no. of valve positions
    6
  • Pneumatic connection 1
    1/2 NPT
  • Mounting position
    Any
  • Pneumatic connection 3
    1/2 NPT
  • Corrosion resistance class (CRC)
    2 - Moderate corrosion stress
  • Note on materials
    RoHS-compliant
  • Type code
    VABM
  • Pilot air port 12
    1/8 NPT
  • Type of mounting
    With through-hole
  • Width dimension
    27.5 mm
  • Product weight
    1662 g
  • Manifold rail material
    Wrought aluminum alloy

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

8026292 Related Documents

8026292 DataSheet.pdf
