8031307 Festo Mechanical & Manual Valves
Part#:8031307
Alt. Part#:VMEF-S-M52-M-N18
Manufacturer:Festo
Category:Mechanical & Manual Valves
Product Lifecycle:Active
Product description

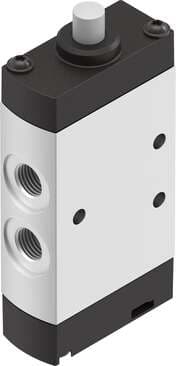

stem actuated valve VMEF-S-M52-M-N18 Valve function: 5/2 monostable, Type of actuation: mechanical, Width: 20 mm, Standard nominal flow rate: 750 l/min, Operating pressure MPa: -0,095 - 1 MPa
Product Details
- Reset method Mechanical spring
- Application note Do not use as mechanical stop
- Symbol 00991364
- Temperature of medium -10 °C ... 60 °C
- Type of mounting With through-hole
- Seals material NBR
- Width 20 mm
- Type code VMEF
- Type of control Direct
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Actuating force 34 N
- Pneumatic connection 2 1/8 NPT
- Note on materials RoHS-compliant
- Operating pressure -0.95 bar ... 10 bar
- Standard nominal flow rate 750 l/min
- Sealing principle Soft
- Explosion prevention and protection Zone 1 (ATEX) Zone 22 (ATEX)
- Ambient temperature -10 °C ... 60 °C
- Pneumatic connection 3 1/8 NPT
- Cover material PA-reinforced
- Lap Overlap
- Design Piston gate valve
- Pneumatic working port 1/8 NPT
- Mounting position Any
- Max. switching frequency 3 Hz
- Product weight 145 g
- Pneumatic connection 4 1/8 NPT
- Housing material Wrought aluminum alloy, anodized
- Valve function 5/2, monostable
- Actuation type Mechanical
- Nominal width 5.2 mm
- Flow direction Reversible
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-]
- Pneumatic connection 1 1/8 NPT
- Pneumatic connection 5 1/8 NPT
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
