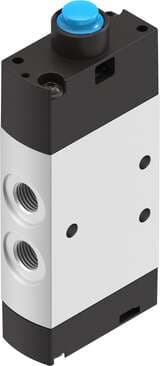

8031326 Festo Mechanical & Manual Valves

Product Details

• Standard nominal flow rate
  750 l/min
• Sealing principle
  Soft
• Pneumatic working port
  1/8 NPT
• Design
  Piston gate valve
• Application note
  Do not use as mechanical stop
• Type of control
  Pilot-controlled
• Operating medium
  Compressed air as per ISO 8573-1:2010 [7:-:-]
• Temperature of medium
  -10 °C ... 60 °C
• Pilot air port 12/14
  M5
• Pneumatic connection 5
  1/8 NPT
• Lap
  Overlap
• Width
  20 mm
• Type code
  VMEF
• Symbol
  00992221
• Explosion prevention and protection
  Zone 1 (ATEX) Zone 22 (ATEX)
• Actuating force
  14 N
• Pneumatic connection 3
  1/8 NPT
• Pneumatic connection 4
  1/8 NPT
• Valve function
  5/2, monostable
• Operating pressure
  -0.95 bar ... 10 bar
Reset method
Pneumatic spring
Pilot air supply port
External
Pilot pressure
2.5 bar ... 10 bar
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
Type of mounting
With through-hole
Cover material
PA-reinforced
Actuation type
Mechanical
Nominal width
5.2 mm
Flow direction
Reversible
Mounting position
Any
Max. switching frequency
3 Hz
Ambient temperature
-10 °C ... 60 °C
Pneumatic connection 2
1/8 NPT
Seals material
NBR
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Product weight
150 g
Pneumatic connection 1
1/8 NPT
Note on materials
RoHS-compliant
Housing material
Wrought aluminum alloy, anodized
