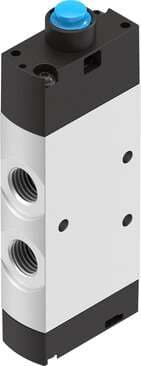

8031329 Festo Mechanical & Manual Valves

Product Details

• Lap
  Overlap
• Actuation type
  Mechanical
• Standard nominal flow rate
  1200 l/min
• Design
  Piston gate valve
• Application note
  Do not use as mechanical stop
• Symbol
  00992220
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Type of mounting
  With through-hole
• Pilot air port 12/14
  M5
• Cover material
  PA-reinforced
• Valve function
  5/2, monostable
• Width
  20 mm
• Nominal width
  7 mm
• Reset method
  Mechanical spring
• Pilot pressure
  2.5 bar ... 10 bar
• Explosion prevention and protection
  Zone 1 (ATEX) Zone 22 (ATEX)
• Product weight
  184 g
• Pneumatic connection 1
  1/4 NPT
• Note on materials
  RoHS-compliant
• Housing material
  Wrought aluminum alloy, anodized
Operating pressure
-0.95 bar ... 10 bar
Pneumatic working port
1/4 NPT
Type code
VMEF
Mounting position
Any
Max. switching frequency
3 Hz
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-]
Temperature of medium
-10 °C ... 60 °C
Pneumatic connection 5
1/4 NPT
Type of control
Pilot-controlled
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Actuating force
14 N
Pneumatic connection 3
1/4 NPT
Sealing principle
Soft
Flow direction
Reversible
Pilot air supply port
External
Ambient temperature
-10 °C ... 60 °C
Pneumatic connection 2
1/4 NPT
Pneumatic connection 4
1/4 NPT
Seals material
NBR
