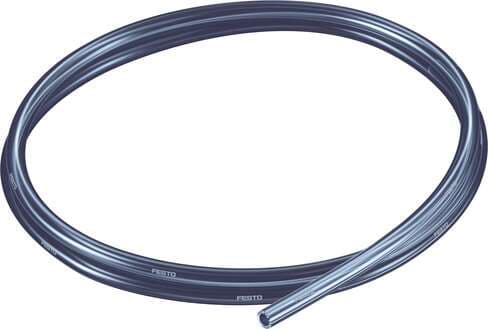

8048683 Festo Pneumatic Tubing

Name: 8048683
Brand: Festo

Part#:8048683

Alt. Part#:PUN-H-6X1-TSW

Manufacturer:Festo

Category:Pneumatic Tubing

Product Lifecycle:Active

Product description

plastic tubing PUN-H-6X1-TSW Approved for use in food processing (hydrolysis resistant) Outside diameter: 6 mm, Bending radius relevant for flow rate: 26 mm, Inside diameter: 4 mm, Min. bending radius: 10 mm, Tubing characteristics: Suitable for energy ch

Product Details

Outside diameter
6 mm
Temperature-dependent operating pressure
-0.95 bar ... 10 bar
Pneumatic connection
For plug connection outside diameter 6 mm For barbed fitting, inside diameter 4 mm, with union nut
Material of pneumatic tubing
TPE-U(PU)
Pneumatic tubing test conditions
Suitability for energy chains: >5 million cycles as per FN 942021
Inside diameter
4 mm
Min. bending radius
10 mm
Product weight by length
0.0183 kg/m
Material fire test
UL94 HB
Tubing characteristics
Suitable for energy chains in applications with high cycle rates
Type code
PUN-H
Ambient temperature
-35 °C ... 60 °C
Shore hardness
D 52 +/-3
Certificate issuing authority
B 013277 0506 00
Certification
TÜV
Color
Translucent black
Bending radius relevant for flow rate
26 mm
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
Note on materials
Free of copper and PTFE RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

8048683 Related Documents

8048683 DataSheet.pdf
