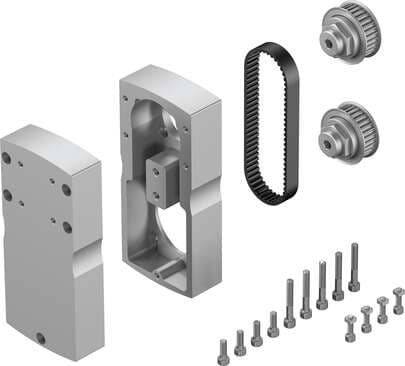

8058983 Festo Axial Kits

Name: 8058983
Brand: Festo

Part#:8058983

Alt. Part#:EAMM-U-86-D60-60PA-102

Manufacturer:Festo

Category:Axial Kits

Product Lifecycle:Active

Product description

parallel kit EAMM-U-86-D60-60PA-102 Suitable for electric drives. Size: 86, Assembly position: Any, Max. speed: 5000 1/min, Storage temperature: -25 - 60 °C, Relative air humidity: 0 - 95 %

Product Details

Max. rotational speed
5000 1/min
Degree of protection
IP40
Product weight
2500 g
Mounting position
Any
Relative air humidity
0 - 95 %
No-load driving torque
0.25 Nm
Interface code, motor in
60PA
Size
86
Mass moment of inertia
175 kgmm²
Ambient temperature
-10 °C ... 60 °C
Type code
EAMM-U
Storage temperature
-25 °C ... 60 °C
Interface code, actuator
D60
Transferable torque
9.5 Nm
Note on materials
RoHS-compliant

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

8058983 Related Documents

8058983 DataSheet.pdf
