8063503 Festo Axial Kits

8063503 on Powermatic Associates

Festo

Part#:8063503

Alt. Part#:EAMM-A-L62-72GA

Manufacturer:Festo

Category:Axial Kits

Product Lifecycle:Active

Product description

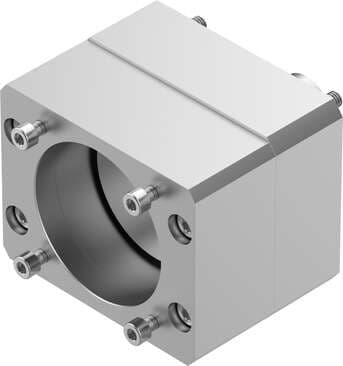

axial kit EAMM-A-L62-72GA Assembly position: Any, Storage temperature: -25 - 60 °C, Relative air humidity: 0 - 95 %, Protection class: IP40, Ambient temperature: -10 - 60 °C

Product Details

Product weight
1487 g
Transferable torque
48 Nm
Type code
EAMM-A
Degree of protection
IP40
Note on materials
RoHS-compliant
Storage temperature
-25 °C ... 60 °C
Ambient temperature
-10 °C ... 60 °C
Interface code, motor in
72GA
Mounting position
Any
Relative air humidity
0 - 95 %
Interface code, actuator
L62

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
