8080941 Festo Mechanical & Manual Valves

Name: 8080941
Brand: Festo

Part#:8080941

Alt. Part#:VHEF-HT-B32-N14

Manufacturer:Festo

Category:Mechanical & Manual Valves

Product Lifecycle:Active

Product description

hand lever valve VHEF-HT-B32-N14 Valve function: 3/2 bistable, Type of actuation: manual, Width: 20 mm, Standard nominal flow rate: 870 l/min, Operating pressure MPa: -0,095 - 1 MPa

Product Details

Valve function
3/2, bistable
Unlocking torque
0.4 Nm
Nominal width
6 mm
Exhaust air function
With flow control option
Explosion prevention and protection
Zone 1 (ATEX) Zone 22 (ATEX)
Product weight
230 g
Pneumatic connection 3
1/4 NPT
Housing material
Wrought aluminum alloy, anodized
Cover material
PA-reinforced
Operating pressure
-0.95 bar ... 10 bar
Actuation type
Manual
Type code
VHEF
Mounting position
Any
Type of control
Direct
Operating medium
Compressed air as per ISO 8573-1:2010 [7:-:-]
Ambient temperature
-10 °C ... 60 °C
Type of mounting
Optionally: With through-hole
Lap
Zero overlap
Width
20 mm
Pneumatic working port
1/4 NPT

Sealing principle

Soft

Manual override

Detenting

Symbol

00995892

Actuating torque

0.7 Nm

Pneumatic connection 2

1/4 NPT

Lever material

PA-reinforced

Max. transverse load on actuator

200 N

Application note

Operate by hand only

Max. switching frequency

0.5 Hz

Temperature of medium

-10 °C ... 60 °C

Pneumatic connection 1

1/4 NPT

Note on materials

RoHS-compliant

Max. force on actuator

200 N

Standard nominal flow rate

870 l/min

Design

Plate seat

Flow direction

Reversible

Information on operating and pilot media

Operation with oil lubrication possible (required for further use)

Corrosion resistance class (CRC)

1 - Low corrosion stress

Seals material

NBR

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

8080941 Related Documents

8080941 DataSheet.pdf

Similar products from: Festo Mechanical & Manual Valves

3488205

Festo

hand lever valve VHER-H-B43C-B-G18 Valve function: 4/3 closed, Type of actuation: manual, Width: 42 mm, Standard nominal flow rate: 800 l/min, Operating pressure: 0 - 10 bar

2 in stock

Manufacturer warranty

8080941 Festo

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 8080941 with other Mechanical & Manual Valves products

Valve function

Unlocking torque

Nominal width

Exhaust air function

Explosion prevention and ...

Product weight

Pneumatic connection 3

Housing material

Cover material

Operating pressure

Selected product

Backordered

Festo

hand lever valve VHEF-HT-B32-N14 Valve function: 3/2 bistable, Type of actuation: manual, Width: 20 ...

Valve function3/2, bistable

Unlocking torque0.4 Nm

Nominal width6 mm

Exhaust air functionWith flow control option

Explosion prevention and protectionZone 1 (ATEX) Zone 22 (ATEX)

Product weight230 g

Pneumatic connection 31/4 NPT

Housing materialWrought aluminum alloy, anod...

Cover materialPA-reinforced

Operating pressure-0.95 bar ... 10 bar

2 in stock

Festo

hand lever valve VHER-H-B43C-B-G18 Valve function: 4/3 closed, Type of actuation: manual, Width: 42 ...

Valve function4/3, closed

Unlocking torque-

Nominal width6 mm

Exhaust air function-

Explosion prevention and protection-

Product weight-

Pneumatic connection 3-

Housing material-

Cover material-

Operating pressure0 bar ... 10 bar

About the manufacturer

Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...

About the Product Category

Mechanical valves are tools that manage the movement and pressure of fluid within a system or process. They have the ability to initiate or halt flow, adjust flow and pressure, dictate the flow direction, modulate flow rates, and enhance safety by alleviating pressure or vacuum.

Recently viewed products

LMHCA571C

Novanta IMS

Novanta IMS LMHCA571C is a stepper motor that falls under the high-torque stepper motors sub-range. It features an integrated driver and a high-torque DC stepper motor with an incremental magnetic encoder, utilizing a single motor stack and closed-loop hMTechnology for precise control. This motor offers a variety of connection types, including a 4-pin M12 male connector, a 12-pin M12 male connector, and a 5-pin M12 male connector, supporting CANopen communication protocol. It operates on a supply voltage range of 12Vdc to 60Vdc, with optimal performance at 24Vdc or 48Vdc. The LMHCA571C is designed for mounting with a 57x57mm flange and is rated with a degree of protection of IP65, making it suitable for environments where dust and water resistance is necessary. It has a moment of inertia of 0.14kg.cm^2 and can deliver a stall torque of 107N.cm. The resolution of this stepper motor is defined by a 1.8° step angle.

0 in stock

MDM1PSD23C7

Novanta IMS

Novanta IMS MDM1PSD23C7 is a stepper motor characterized by its integrated driver and 2-phase DC stepper motor SPI functionality. This model falls within the stepper motors sub-range and is distinguished by its triple (3) motor stack Plus version, which accommodates a universal input. It features a non-locking spring-clamp connector and a 10-pin IDC non-locking connector for its connection type. The supply voltage required for operation ranges from 12Vdc to 75Vdc, with specific compatibility at 24Vdc, 48Vdc, and 72Vdc. Designed for mounting with a 57x57mm flange, it operates efficiently within an ambient air temperature range of 0 to +85°C. The MDM1PSD23C7 offers a degree of protection rated at IP20, a moment of inertia at 0.46kg.cm^2, a stall torque of 169N.cm, and a resolution defined by a 1.8° step angle.

0 in stock

MFI1FRL17N4

Novanta IMS

Novanta IMS MFI1FRL17N4 is a stepper motor controller within the Stepper motor controllers sub-range, designed under the MicroDrive series. It operates with a supply voltage range of 12Vdc to 48Vdc, nominally at 24Vdc, and supports a rated current of 3A. This controller is equipped for DC stepper motor drive functions and features an ambient air temperature for operation between 0 and +65 °C. For connectivity, it includes 30cm / 12" bare end flying leads, a 10-pin wire crimp connector, and a 4-pin wire crimp connector. Communication with the controller is facilitated through RS-422 and RS-485 protocols. It also offers 4 x digital outputs (sinking; NPN) and 4 x digital inputs (sourcing; NPN). The device is designed to be stored in conditions ranging from -25 to +70 °C ambient air temperature.

0 in stock

RSM 40-3M/CS15643

Turck

RSM 40-3M/CS15643 Turck - RSM 40-3M/CS15643 Actuator and Sensor Cable, Connection Cable

39 in stock

MDI4MRQ34C1-EQ

Novanta IMS

Novanta IMS MDI4MRQ34C1-EQ is a stepper motor designed with an integrated driver and a 2-phase AC stepper motor configuration. It features an external single-end 512-line optical encoder and is built with a triple (3) motor stack, Plus 2 version for expanded features. This motor offers connectivity through a 19-pin M23 male connector and a 5-pin M12 female connector, supporting RS-422 and RS-485 communication protocols. It operates on a supply voltage of 120Vac and is mounted via an 85x85mm flange. The MDI4MRQ34C1-EQ is designed to function within an ambient air temperature range of 0 to +85°C and is protected to a degree of IP65. It has a moment of inertia of 3.4kg.cm^2 and provides a stall torque of 529N.cm, with a resolution characterized by a 1.8° step angle.

0 in stock

PT06A-14-19S-1640-4-14-19P

Turck

PT06A-14-19S-1640-4-14-19P Turck - PT06A-14-19S-1640-4-14-19P Actuator and Sensor Cordset, Extension Cordset

0 in stock

LMHCA571C

Novanta IMS

0 in stock

MDM1PSD23C7

Novanta IMS

0 in stock

MFI1FRL17N4

Novanta IMS

0 in stock

MDI4MRQ34C1-EQ

Novanta IMS

0 in stock

LMHCA571C

Novanta IMS

0 in stock

MDM1PSD23C7

Novanta IMS

0 in stock

Relevant products

8080960

Verified stock: 4

selector valve VHEF-E-B52-G18 Valve function: 5/2 bistable, Type of actuation: manual, Width: 20 mm, Standard nominal flow rate: 750 l/min, Operating pressure MPa: -0,095 - 1 MPa

Festo

8080778

Verified stock: 0

connecting cable NEBL-T12W4-E-2-N-LE4 Based on the standard: EN 61076-2-111, Authorisation: c UL us - Listed (OL), Certificate issuing department: UL E504946, Cable identification: Without inscription label holder, Product weight: 243 g

Festo

8080964

Verified stock: 0

selector valve VHEF-ET-B32-G18 Valve function: 3/2 bistable, Type of actuation: manual, Width: 20 mm, Standard nominal flow rate: 750 l/min, Operating pressure MPa: -0,095 - 1 MPa

Festo

8080793

Verified stock: 0

connecting cable NEBL-T12G4-E-15-N-LE4 Based on the standard: EN 61076-2-111, Authorisation: c UL us - Listed (OL), Certificate issuing department: UL E504946, Cable identification: Without inscription label holder, Product weight: 1556 g

Festo

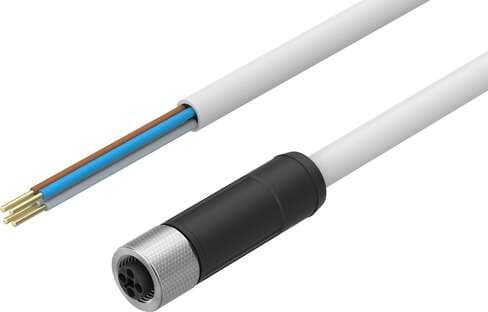

8080792
