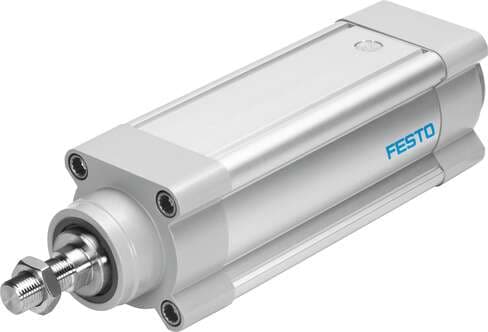

8083718 Festo Electric Actuators

Product Details

• Characteristics of digital logic outputs
  Configurable Not galvanically isolated
• Ready status indication
  LED
• KC characters
  KC EMC
• Relative air humidity
  0 - 90 %
• Parameterization interface
  IO-Link® User interface
• Power supply, type of connection
  Plug
• Logic interface, number of poles/wires
  8
• Rotor position sensor resolution
  16 bit
• IO-Link®, process data width IN
  2 Byte
• Additional functions
  User interface Integrated end-position sensing
• Rotor position sensor
  Absolute encoder, single-turn
• Max. cable length
  15 m outputs 20 m for IO-Link® operation
• Logic interface, connection pattern
  00992264
• Power supply, connection technology
  M12x1, T-coded as per EN 61076-2-111
• Number of digital logic outputs 24 V DC
  2
• Nominal current
  5.3 A
• IO-Link®, Connection technology
  Plug
• IO-Link®, service data contents IN
  32 bit force 32 bit speed
• IO-Link®, process data width OUT
  2 Byte
• Stroke reserve
  0 mm
Motor type
Stepper motor
Spindle type
Ball screw drive
Max. speed
0.24 m/s
Corrosion resistance class (CRC)
0 - No corrosion stress
Fixed bearing dynamic basic load rating
13321 N
Max. force Fz
4937 N
Guide value for payload, horizontal
10 kg
Feed constant
12 mm/U
Switching logic at outputs
PNP (positive switching)
Vibration resistance
Transport application test with severity level 1 as per FN 942017-4 and EN 60068-2-6
Logic input specification
Based on IEC 61131-2, type 1
Display
LED
Permissible voltage fluctuations
+/- 15 %
Number of digital logic inputs
2
Max. current consumption
5300 mA
IO-Link®, number of ports
1
IO-Link®, process data content IN
1 bit (state device) 1 bit (state out)
Screw diameter
12 mm
Shock resistance
Shock test with severity level 1 as per FN 942017-5 and EN 60068-2-27
Insulation protection class
B
Characteristics of logic input
Configurable Not galvanically isolated
Input switching logic
PNP (positive switching)
Logic interface, connection type
Plug
Power supply, connection pattern
00995989
DC nominal voltage
24 V
Storage temperature
-20 °C ... 60 °C
Max. current of digital logic outputs
100 mA
IO-Link®, port class
A
IO-Link®, protocol version
Device V 1.1
IO-Link®, process data content OUT
1 bit (move in) 1 bit (quit error)
Protection class
III
Size
60
Spindle pitch
12 mm/U
Mounting position
Any
Position sensing
Motor encoder For proximity sensor
Duty cycle
100%
Linear guide dynamic basic load rating
13400 N
Max. feed force Fx
250 N
Linear guide statistical basic load rating
26900 N
Additional weight per 10 mm stroke
95 g
Note on ambient temperature
Above an ambient temperature of 30°C, the power must be reduced by 2% per K.
Rotor position sensor measuring principle
Magnetic
Logic interface, connection technology
M12x1, A-coded as per EN 61076-2-101
Power supply, number of pins/wires
4
Work range of logic input
24 V
IO-Link®, communication mode
COM3 (230.4 kBd)
IO-Link®, minimum cycle time
1 ms
IO-Link®, data memory required
500 byte
IO-Link®, SIO mode support
Yes
Working stroke
100 mm
Guide
Recirculating ball bearing guide
Symbol
00997294
CE marking (see declaration of conformity)
As per EU EMC directive As per EU RoHS directive
Certification
RCM compliance mark
Max. force Fy
4937 N
Max. radial force on actuator shaft
420 N
Guide value for payload, vertical
10 kg
Basic weight with 0 mm stroke
2735 g
Reversing backlash
150 µm
Type code
EGSS
Design
Electrical mini-slide With integrated drive
Repetition accuracy
±0.015 mm
Dynamic basic load rating, ball screw drive
4600 N
Max. torque My
30 Nm
Ball screw drive statistical basic load rating
8500 N
Reference value, running performance
5000 km
Additional moving mass per 10 mm stroke
40 g
Homing
Fixed stop block positive Reference switch
Max. acceleration
5 m/s²
Degree of protection
IP40
Ambient temperature
0 °C ... 50 °C
Max. torque Mx
20 Nm
Max. torque Mz
30 Nm
Statistical fixed bearing load rating
7000 N
Moving mass at 0 mm stroke
675 g
Material of yoke plate
Wrought aluminum alloy, anodized
Maintenance interval
Life-time lubrication
Product weight
3685 g
Slide carriage material
Roller bearing steel
Spindle nut material
Roller bearing steel
Type of mounting
With internal thread With cylindrical pin
Piston rod material
High-alloy stainless steel
Slide material
Wrought aluminum alloy, anodized
Note on materials
Contains paint-wetting impairment substances RoHS-compliant
Spindle material
Roller bearing steel
Guide rail material
Roller bearing steel
Housing material
Wrought aluminum alloy, anodized
