8092271 Festo Axial Kits

8092271 on Powermatic Associates

Festo

Part#:8092271

Alt. Part#:EAMM-A-V32-60AA

Manufacturer:Festo

Category:Axial Kits

Product Lifecycle:Active

Product description

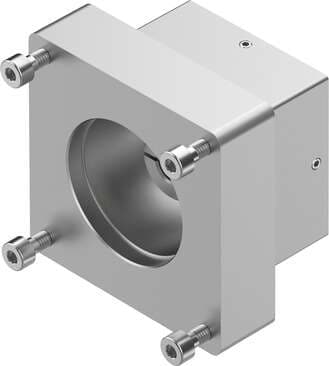

axial kit EAMM-A-V32-60AA Nominal length: 42 mm, Assembly position: Any, Max. speed: 10000 1/min, Storage temperature: -25 - 60 °C, Relative air humidity: 0 - 95 %

Product Details

Storage temperature
-25 °C ... 60 °C
Degree of protection
IP40
Interface code, motor in
60AA
Type code
EAMM-A
Ambient temperature
-10 °C ... 60 °C
Transferable torque
1.5 Nm
Max. rotational speed
10000 1/min
Interface code, actuator
V32
Nominal length
42 mm
Relative air humidity
0 - 95 %
Note on materials
RoHS-compliant
Mounting position
Any
Mass moment of inertia
0.19 kgmm²
Product weight
203 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

8092271 Related Documents

8092271 DataSheet.pdf

Similar products from: Festo Axial Kits

550980 on Powermatic Associates

550980

Festo

axial kit EAMM-A-D32-57A Suitable for electric drives. Assembly position: Any, Storage temperature: -25 - 60 °C, Relative air humidity: 0 - 95 %, Protection class: IP40, Ambient temperature: -10 - 60 °C

Manufacturer warranty

8092271 Festo

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 8092271 with other Axial Kits products

Storage temperature

Degree of protection

Interface code, motor in

Type code

Ambient temperature

Transferable torque

Max. rotational speed

Interface code, actuator

Nominal length

Relative air humidity

Selected product

8092271

Backordered

8092271

Festo

axial kit EAMM-A-V32-60AA Nominal length: 42 mm, Assembly position: Any, Max. speed: 10000 1/min, St...

Storage temperature-25 °C ... 60 °C

Degree of protectionIP40

Interface code, motor in60AA

Type codeEAMM-A

Ambient temperature-10 °C ... 60 °C

Transferable torque1.5 Nm

Max. rotational speed10000 1/min

Interface code, actuatorV32

Nominal length42 mm

Relative air humidity0 - 95 %

550980

1 in stock

550980

Festo

axial kit EAMM-A-D32-57A Suitable for electric drives. Assembly position: Any, Storage temperature: ...

Storage temperature-25 °C ... 60 °C

Degree of protectionIP40

Interface code, motor in-

Type codeEAMM-A

Ambient temperature-10 °C ... 60 °C

Transferable torque6.5 Nm

Max. rotational speed-

Interface code, actuatorD32A D32C

Nominal length-

Relative air humidity0 - 95 %

About the manufacturer

Festo

Powermatic Associates is an authorized Festo distributor, proudly offering a wide array of Festo's innovative industrial automation products and solutions. Festo is a globally recognized leader in automation technology and pneumatic solutions, renowned for their commitment to quality, efficiency, and sustainability. With a vast portfolio ranging from actuators, valves, sensors, and connectors to e...

Recently viewed products

MH31003P02A2200 on Powermatic Associates

MH31003P02A2200

Schneider Electric

Schneider Electric MH31003P02A2200 is an AC servo motor characterized by its 100x100mm flange mounting mode and operates within an ambient air temperature range of -20 to +40°C. This motor features an absolute multi-turn 128ppr SinCos encoder, a smooth shaft, and triple motor stacks that are optimized for torque and speed of rotation, offering medium inertia. It comes with a rotatable right-angled connector for connectivity and supports a wide range of supply voltages from 115Vac to 480Vac, including specific voltages such as 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, 415Vac, and 440Vac. Part of the Servo motors sub-range, it has an IP65 degree of protection and utilizes the HIPERFACE communication protocol. The motor achieves a rotational speed of 4000rpm, a stall torque of 9Nm, and is rated at 2.9kW or 2900W of active power, equivalent to 3.9HP. It has a moment of inertia of 6.5kg.cm2, with a nominal torque of 6.2Nm and a maximum torque capability of 27Nm.

LMDAM852 on Powermatic Associates

LMDAM852

Novanta IMS

Novanta IMS LMDAM852 is a stepper motor that falls under the hybrid stepper motors sub-range, featuring an integrated driver and hybrid DC stepper motor design. It is equipped with an absolute multi-turn encoder, double motor stack, and operates on closed-loop hMTechnology. For connections, it offers a 2-pin screw-lock connector, a 7-pin spring-clamp connection, and a 9-pin D-sub male connector. The LMDAM852 supports RS-422 and RS-485 communication protocols. It operates on a supply voltage ranging from 12Vdc to 70Vdc, with optimal performance at 24Vdc and 48Vdc. The motor is designed for mounting with an 85x85mm flange and has an IP20 degree of protection. It features a moment of inertia of 1.35kg.cm^2, providing a standard torque, and a stall torque of 339N.cm. The resolution is defined by a 1.8° step angle.

RKC 4.5T-3-RSM 50/S90/S3570 on Powermatic Associates

RKC 4.5T-3-RSM 50/S90/S3570

Turck

RKC 4.5T-3-RSM 50/S90/S3570 Turck - RKC 4.5T-3-RSM 50/S90/S3570 Actuator and Sensor Cordset, Extension Cordset

CMBS 8151-0 on Powermatic Associates

CMBS 8151-0

Turck

CMBS 8151-0 Turck - CMBS 8151-0

HGF36150U33X on Powermatic Associates

HGF36150U33X

Schneider Electric

Square D by Schneider Electric HGF36150U33X is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HGF sub-range, designed with a PowerPact H-Frame 150 Micrologic 3.2S (LSI) 3P 150A 600Vac/500Vdc. It features an 18kA busbar rated at 80%, with a terminal nut kit for fixed busbar connection on both line and load sides. This 3-pole (3P) device offers protection functions including Long-time (L), Short-time with fixed time delay (S), and Instantaneous (I) protection. It has a rated current of 150A, a rated insulation voltage (Ui) of 750V, and operates at rated voltages of 600Vac 600Y/347Vac and 500Vdc. The MCCB is designed for individual unit mount on plate, with dimensions of 163 mm in height, 104 mm in width, and 86 mm in depth. It provides an IP40 degree of protection and features a toggle (manual) operating mode. Protection settings are adjustable for overload (L) from 0.3 to 1 x In (50A to 150A), for short-circuit with time delay (S) from 1.5 to 10 x Ir (225A to 1500A), and for instantaneous short-circuit (I) from 1.5 to 15 x In (225A to 2250A). The rated operating voltage (Ue) is 690V, with a rated impulse voltage (Uimp) of 8kV. The trip current rating is 150 AT, with a frame current rating of 150 AF. It has a short circuit breaking rating of 65kA at 240Vac, 35kA at 480Vac and 480Y/277Vac, 18kA at 600Vac and 600Y/347Vac, and 20kA at 250Vdc and 500Vdc, according to UL489 standards. The trip unit type is an electronic Micrologic Standard 3.2S (LSI) with no display, and it falls under utilisation category A.

PAXT0010 on Powermatic Associates

PAXT0010

Red Lion

Red Lion PAXT0010 is a universal digital temperature meter part of the PAX series, designed with 3 user inputs in a 1/8 DIN horizontal configuration measuring 96mm by 48mm with 14.2mm green digits and communication capability. It operates on a supply voltage of 85-250Vac, accommodating a wide range of AC inputs including 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac. This thermometer offers an IP65 NEMA 4X degree of protection, ensuring durability in various environments. It features a 20Hz analog input sampling rate and includes 1 analog input supporting 4-20mA, 0-20mA, 0-10Vdc, multiple thermocouple types (T, E, J, K, R, S, B, N, C), Pt100, and Ni120 RTDs DC with 16-bits conversion and an accuracy range of 0.12% to 0.7%. Additionally, it is equipped with 3 digital inputs (Sink/Source) for user input and 1 analog output for retransmission purposes.

MH31003P02A2200 on Powermatic Associates

MH31003P02A2200

Schneider Electric

Schneider Electric MH31003P02A2200 is an AC servo motor characterized by its 100x100mm flange mounting mode and operates within an ambient air temperature range of -20 to +40°C. This motor features an absolute multi-turn 128ppr SinCos encoder, a smooth shaft, and triple motor stacks that are optimized for torque and speed of rotation, offering medium inertia. It comes with a rotatable right-angled connector for connectivity and supports a wide range of supply voltages from 115Vac to 480Vac, including specific voltages such as 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, 415Vac, and 440Vac. Part of the Servo motors sub-range, it has an IP65 degree of protection and utilizes the HIPERFACE communication protocol. The motor achieves a rotational speed of 4000rpm, a stall torque of 9Nm, and is rated at 2.9kW or 2900W of active power, equivalent to 3.9HP. It has a moment of inertia of 6.5kg.cm2, with a nominal torque of 6.2Nm and a maximum torque capability of 27Nm.

LMDAM852 on Powermatic Associates

LMDAM852

Novanta IMS

Novanta IMS LMDAM852 is a stepper motor that falls under the hybrid stepper motors sub-range, featuring an integrated driver and hybrid DC stepper motor design. It is equipped with an absolute multi-turn encoder, double motor stack, and operates on closed-loop hMTechnology. For connections, it offers a 2-pin screw-lock connector, a 7-pin spring-clamp connection, and a 9-pin D-sub male connector. The LMDAM852 supports RS-422 and RS-485 communication protocols. It operates on a supply voltage ranging from 12Vdc to 70Vdc, with optimal performance at 24Vdc and 48Vdc. The motor is designed for mounting with an 85x85mm flange and has an IP20 degree of protection. It features a moment of inertia of 1.35kg.cm^2, providing a standard torque, and a stall torque of 339N.cm. The resolution is defined by a 1.8° step angle.

HGF36150U33X on Powermatic Associates

HGF36150U33X

Schneider Electric

Square D by Schneider Electric HGF36150U33X is a Moulded Case Circuit Breaker (MCCB) within the PowerPacT HGF sub-range, designed with a PowerPact H-Frame 150 Micrologic 3.2S (LSI) 3P 150A 600Vac/500Vdc. It features an 18kA busbar rated at 80%, with a terminal nut kit for fixed busbar connection on both line and load sides. This 3-pole (3P) device offers protection functions including Long-time (L), Short-time with fixed time delay (S), and Instantaneous (I) protection. It has a rated current of 150A, a rated insulation voltage (Ui) of 750V, and operates at rated voltages of 600Vac 600Y/347Vac and 500Vdc. The MCCB is designed for individual unit mount on plate, with dimensions of 163 mm in height, 104 mm in width, and 86 mm in depth. It provides an IP40 degree of protection and features a toggle (manual) operating mode. Protection settings are adjustable for overload (L) from 0.3 to 1 x In (50A to 150A), for short-circuit with time delay (S) from 1.5 to 10 x Ir (225A to 1500A), and for instantaneous short-circuit (I) from 1.5 to 15 x In (225A to 2250A). The rated operating voltage (Ue) is 690V, with a rated impulse voltage (Uimp) of 8kV. The trip current rating is 150 AT, with a frame current rating of 150 AF. It has a short circuit breaking rating of 65kA at 240Vac, 35kA at 480Vac and 480Y/277Vac, 18kA at 600Vac and 600Y/347Vac, and 20kA at 250Vdc and 500Vdc, according to UL489 standards. The trip unit type is an electronic Micrologic Standard 3.2S (LSI) with no display, and it falls under utilisation category A.

PAXT0010 on Powermatic Associates

PAXT0010

Red Lion

Red Lion PAXT0010 is a universal digital temperature meter part of the PAX series, designed with 3 user inputs in a 1/8 DIN horizontal configuration measuring 96mm by 48mm with 14.2mm green digits and communication capability. It operates on a supply voltage of 85-250Vac, accommodating a wide range of AC inputs including 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac. This thermometer offers an IP65 NEMA 4X degree of protection, ensuring durability in various environments. It features a 20Hz analog input sampling rate and includes 1 analog input supporting 4-20mA, 0-20mA, 0-10Vdc, multiple thermocouple types (T, E, J, K, R, S, B, N, C), Pt100, and Ni120 RTDs DC with 16-bits conversion and an accuracy range of 0.12% to 0.7%. Additionally, it is equipped with 3 digital inputs (Sink/Source) for user input and 1 analog output for retransmission purposes.

MH31003P02A2200 on Powermatic Associates

MH31003P02A2200

Schneider Electric

Schneider Electric MH31003P02A2200 is an AC servo motor characterized by its 100x100mm flange mounting mode and operates within an ambient air temperature range of -20 to +40°C. This motor features an absolute multi-turn 128ppr SinCos encoder, a smooth shaft, and triple motor stacks that are optimized for torque and speed of rotation, offering medium inertia. It comes with a rotatable right-angled connector for connectivity and supports a wide range of supply voltages from 115Vac to 480Vac, including specific voltages such as 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac, 380Vac, 400Vac, 415Vac, and 440Vac. Part of the Servo motors sub-range, it has an IP65 degree of protection and utilizes the HIPERFACE communication protocol. The motor achieves a rotational speed of 4000rpm, a stall torque of 9Nm, and is rated at 2.9kW or 2900W of active power, equivalent to 3.9HP. It has a moment of inertia of 6.5kg.cm2, with a nominal torque of 6.2Nm and a maximum torque capability of 27Nm.

LMDAM852 on Powermatic Associates

LMDAM852

Novanta IMS

Novanta IMS LMDAM852 is a stepper motor that falls under the hybrid stepper motors sub-range, featuring an integrated driver and hybrid DC stepper motor design. It is equipped with an absolute multi-turn encoder, double motor stack, and operates on closed-loop hMTechnology. For connections, it offers a 2-pin screw-lock connector, a 7-pin spring-clamp connection, and a 9-pin D-sub male connector. The LMDAM852 supports RS-422 and RS-485 communication protocols. It operates on a supply voltage ranging from 12Vdc to 70Vdc, with optimal performance at 24Vdc and 48Vdc. The motor is designed for mounting with an 85x85mm flange and has an IP20 degree of protection. It features a moment of inertia of 1.35kg.cm^2, providing a standard torque, and a stall torque of 339N.cm. The resolution is defined by a 1.8° step angle.

Relevant products

8092506 on Powermatic Associates

8092506

Verified stock: 0

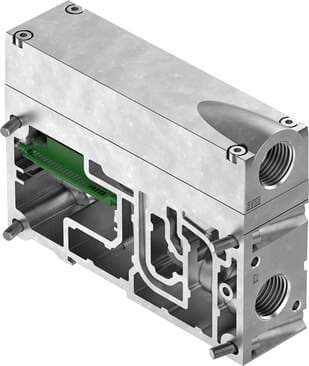

supply plate VABF-S6-1-P1A7-G12-CB Width: 38 mm, CE mark (see declaration of conformity): to EU directive low-voltage devices, Corrosion resistance classification CRC: 0 - No corrosion stress, Product weight: 611 g, Pneumatic connection, port 1: G1/2

Festo

8092502 on Powermatic Associates

8092502

Verified stock: 0

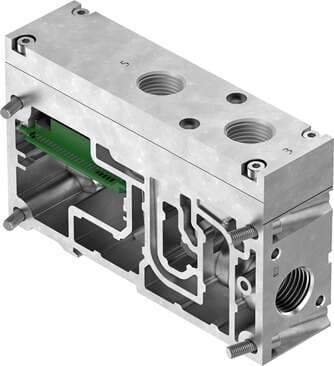

supply plate VABF-S6-1-P1A6-G12-CB Width: 38 mm, CE mark (see declaration of conformity): to EU directive low-voltage devices, Corrosion resistance classification CRC: 0 - No corrosion stress, Product weight: 600 g, Pneumatic connection, port 1: G1/2

Festo

8092674 on Powermatic Associates

8092674

Verified stock: 0

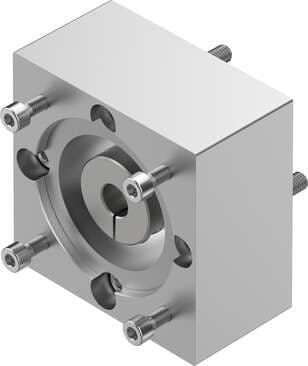

axial kit EAMM-A-T46-70A Nominal length: 42 mm, Assembly position: Any, Max. speed: 8000 1/min, Storage temperature: -25 - 60 °C, Relative air humidity: 0 - 95 %

Festo

8092623 on Powermatic Associates

8092623

Verified stock: 0

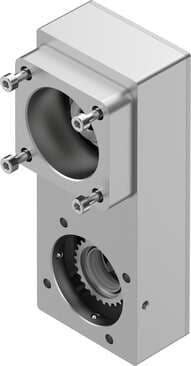

parallel kit EAMM-U-45-V32-38AA-63 Size: 45, Centre-to-centre distance: 63 mm, Assembly position: Any, Gear unit ratio: 1:1, Max. speed: 3600 1/min
