38.51.3.240.0060 Finder Control Relays

38.51.3.240.0060 on Powermatic Associates
Finder

Part#:38.51.3.240.0060

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

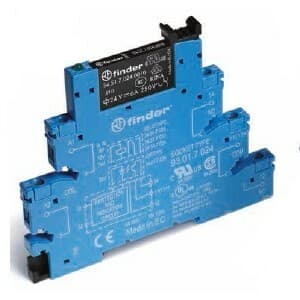

Finder 38.51.3.240.0060 is a relay with a box-clamp connection type, designed to handle rated currents of 6A at 250Vac (AC-1) and 6A at 30Vdc (DC-1), with lower currents of 0.2A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts in DC-1 design. It operates with a supply voltage of 1C/O / SPDT (Single Pole Double Throw), supporting an ambient air temperature range for operation of 300VA at 230Vac and for storage at AC-15 with 1500VA at 250Vac. The rated voltage for AC operation is specified at -40 to +55 degrees Celsius, with a communication protocol of C. It features a net width of IP20 and offers protection functions at 250Vac, with a control voltage (AC) of 4 kV. The mounting mode is 6.2 mm wide, suitable for 1 Pole(s) configurations, and it comes in a color that supports 230Vac-240Vac (50Hz/60Hz) operations. Its residual current sensitivity is designed for DIN rail or plug-in mounting, adhering to EN61984 standards. The relay's contacts are made of AgNi (Silver Nickel), ensuring compatibility with specified electrical requirements.

Product Details

  • Product series / family name
    38 series
  • Connection type
    Box-clamp
  • Ambient air temperature for operation
    -40...+55 °C
  • Contacts coating
    AgNi (Silver Nickel)
  • Main function
    Relay
  • Rated voltage (AC)
    250Vac
  • Degree of protection
    IP20
  • Net Width (mm)
    6.2 mm
  • Rated current
    6A (250Vac; AC-1) 6A (30Vdc; DC-1) 0.2A (110Vdc; DC-1) 0.12A (220Vdc; DC-1)
  • Mounting mode
    DIN rail Plug-in
  • Contacts type
    1C/O / SPDT (Single Pole Double Throw)
  • Rated impulse voltage (Uimp)
    4 kV
  • Rated power
    300VA (230Vac; AC-15) 1500VA (250Vac; AC-1)
  • Poles
    1 Pole(s)
  • Compliant with standard(s)
    cURus RINA IMQ CSA EAC CE EN 60664-1 EN 60715 EN 61810-1 EN 61984
  • Mounting location
    EN61984
  • Primary brand
    Finder
  • Control Voltage (AC)
    230Vac-240Vac (50Hz/60Hz)
  • Contents
    (Socket) 93.01.3.240 (Relay) 34.51.7.060.0060

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

38.51.3.240.0060 Related Documents

Finder - 38 Series - Catalogue.pdf
