Powermatic Associates Logo

40.31.8.230.0000 Finder Control Relays

40.31.8.230.0000 on Powermatic Associates
Finder

Part#:40.31.8.230.0000

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

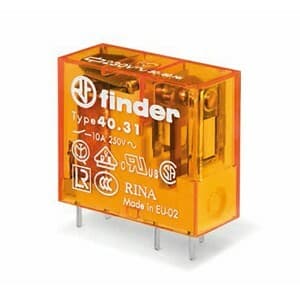

Finder 40.31.8.230.0000 is a relay with a solder pin connection type, designed for a rated current of 10A at 250Vac (AC-1) and 10A at 30Vdc (DC-1), with lower currents of 0.3A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It supports a supply voltage of 1C/O / SPDT (Single Pole Double Throw), with an ambient air temperature for operation at 500VA (230Vac) and for storage at 2500VA (250Vac). The rated voltage for AC operation is specified with an ambient temperature range of -40 to +85 degrees Celsius. It utilizes a communication protocol labeled 'C', with a net width of 250Vac and a depth of 25 mm. The control voltage for AC is rated at 6 kV, with a mounting mode of 29 mm and a rated active power for 1 Pole(s). The power consumption is noted at 230Vac (50Hz/60Hz), with a residual current sensitivity suitable for PCB and plug-in applications. The visual position indicator is defined by 5.3mm pins pitch, and the durability is rated for 200,000 operations for Normally Closed (NC) circuits, with a material composition of AgNi (Silver Nickel) for contacts, capable of up to 10,000,000 operations. The length is specified as 12.4 mm, with a color code for 230Vac operation.

Product Details

  • Rated voltage (AC)
    250Vac
  • Poles
    1 Pole(s)
  • Primary brand
    Finder
  • Rated power
    500VA (230Vac; AC-15) 2500VA (250Vac; AC-1)
  • Control Voltage (AC)
    230Vac (50Hz/60Hz)
  • Degree of protection
    RT II
  • Electrical durability (with load)
    200 000 operations
  • Net Depth (mm)
    12.4 mm
  • Product series / family name
    40 series
  • Mounting mode
    PCB Plug-in
  • Ambient air temperature for operation
    -40...+85 °C
  • Net Width (mm)
    29 mm
  • Distance
    5.3mm pins pitch
  • Connection type
    Solder pin
  • Contacts type
    1C/O / SPDT (Single Pole Double Throw)
  • Contacts coating
    AgNi (Silver Nickel)
  • Main function
    Relay
  • Rated current
    10A (250Vac; AC-1) 10A (30Vdc; DC-1) 0.3A (110Vdc; DC-1) 0.12A (220Vdc; DC-1)
  • Compliant with standard(s)
    cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC EN 60335-1 EN 60664-1 EN 60715 EN 61000-4-5 EN 61810-1
  • Rated impulse voltage (Uimp)
    6 kV
  • Mechanical durability (at no load)
    10 000 000 operations
  • Net Height (mm)
    25 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

40.31.8.230.0000 Related Documents

Finder - 40 Series - Catalogue.pdf
