40.31.9.012.0000 Finder Control Relays

40.31.9.012.0000 on Powermatic Associates
Finder

Part#:40.31.9.012.0000

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

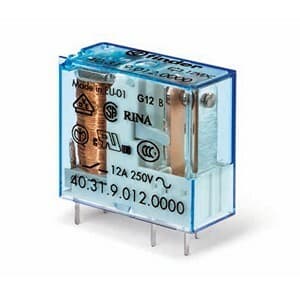

Finder 40.31.9.012.0000 is a relay with a solder pin connection type, designed for a rated current of 12A at 250Vac (AC-1) and 12A at 30Vdc (DC-1), with lower current ratings of 0.6A at 110Vdc and 0.3A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 1C/O / SPDT (Single Pole Double Throw), capable of handling ambient air temperatures from -40 to +85 degrees Celsius for operation and is suitable for storage in similar conditions. The relay supports a rated voltage of 250Vac, with a control voltage of 6 kV, and is designed for PCB or plug-in mounting. It features a net width of 29 mm, a net depth of 25 mm, and a power consumption of 0.65 W. The visual position indicator has a 5.3mm pins pitch, and the relay is capable of 200,000 operations for Normally Closed (NC) circuits and 10,000,000 operations overall. The relay's contacts are made of AgNi (Silver Nickel), ensuring durability and longevity in its applications.

Product Details

  • Control Voltage (DC)
    12Vdc
  • Compliant with standard(s)
    cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC EN 60335-1 EN 60664-1 EN 60715 EN 61000-4-5 EN 61810-1
  • Net Width (mm)
    29 mm
  • Poles
    1 Pole(s)
  • Power consumption
    0.65 W
  • Rated impulse voltage (Uimp)
    6 kV
  • Rated voltage (AC)
    250Vac
  • Mounting mode
    PCB Plug-in
  • Contacts coating
    AgNi (Silver Nickel)
  • Contacts type
    1C/O / SPDT (Single Pole Double Throw)
  • Electrical durability (with load)
    200 000 operations
  • Net Height (mm)
    25 mm
  • Connection type
    Solder pin
  • Degree of protection
    RT II
  • Mechanical durability (at no load)
    10 000 000 operations
  • Net Depth (mm)
    12.4 mm
  • Product series / family name
    40 series
  • Rated power
    1000VA (230Vac; AC-15) 3000VA (250Vac; AC-1) 0.65W
  • Ambient air temperature for operation
    -40...+85 °C
  • Main function
    Relay
  • Rated current
    12A (250Vac; AC-1) 12A (30Vdc; DC-1) 0.6A (110Vdc; DC-1) 0.3A (220Vdc; DC-1)
  • Distance
    5.3mm pins pitch
  • Primary brand
    Finder

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

40.31.9.012.0000 Related Documents

Finder - 40 Series - Catalogue.pdf
