40.52.7.024.0300 Finder Control Relays

40.52.7.024.0300 on Powermatic Associates
Finder

Part#:40.52.7.024.0300

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

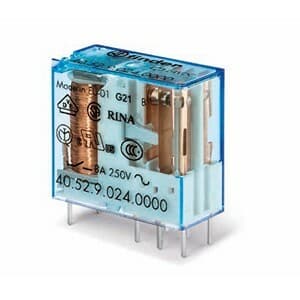

Miniature electromechanical PCB power relay - Flux proof (RTII) - Finder (40 series) - Control coil voltage 24Vdc - 2 poles (2P) - 2NO / DPST-NO (Double Pole Single Throw - Normally Open) contacts - Rated current 8A (250Vac; AC-1) / 8A (30Vdc; DC-1) - Rat

Product Details

  • Product series / family name
    40 series
  • Control Voltage (DC)
    24Vdc
  • Ambient air temperature for operation
    -40...+85 °C
  • Net Height (mm)
    25 mm
  • Net Depth (mm)
    12.4 mm
  • Distance
    5.3mm pins pitch
  • Rated current
    8A (250Vac; AC-1) 8A (30Vdc; DC-1) 0.6A (110Vdc; DC-1) 0.25A (220Vdc; DC-1)
  • Number of Normally Open (NO) circuits
    2 NO Pole(s)
  • Degree of protection
    RT II
  • Mechanical durability (at no load)
    10 000 000 operations
  • Primary brand
    Finder
  • Connection type
    Solder pin
  • Contacts type
    2NO / DPST-NO (Double Pole Single Throw - Normally Open)
  • Compliant with standard(s)
    cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC EN 60335-1 EN 60664-1 EN 60715 EN 61000-4-5 EN 61810-1
  • Contacts coating
    AgNi (Silver Nickel)
  • Rated power
    750VA (230Vac; AC-15) 2000VA (250Vac; AC-1) 0.5W
  • Mounting mode
    PCB Plug-in
  • Power consumption
    0.5 W
  • Rated impulse voltage (Uimp)
    6 kV
  • Net Width (mm)
    29 mm
  • Main function
    Relay
  • Rated voltage (AC)
    250Vac
  • Poles
    2 Pole(s)
  • Electrical durability (with load)
    100 000 operations

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
