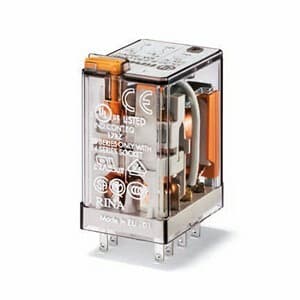

55.32.9.024.0000 Finder Control Relays

55.32.9.024.0000 on Powermatic Associates
Finder

Part#:55.32.9.024.0000

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

Finder 55.32.9.024.0000 is a relay with solder pin connection type, designed for a rated current of 10A at 250Vac (AC-1) and 10A at 30Vdc (DC-1), with lower current ratings of 0.25A at 110Vdc and 0.12A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 2C/O / DPDT (Double Pole Double Throw), and is capable of handling ambient air temperatures for operation and storage from -40 to +85 degrees Celsius. The relay supports a rated voltage of 24Vdc and a control voltage of 4 kV, with protection functions rated at 250Vac. It has a net depth of 37.2 mm, mounting mode dimensions of 27.7 mm, and a power consumption depth of 20.7 mm. Designed for plug-in mounting, it features 2 poles and is capable of up to 200,000 operations for Normally Closed (NC) circuits, with a durability of 50,000,000 operations. The contacts are made from AgNi (Silver Nickel).

Product Details

  • Rated power
    500VA (230Vac; AC-15) 2500VA (250Vac; AC-1)
  • Control Voltage (DC)
    24Vdc
  • Mounting mode
    Plug-in
  • Product series / family name
    55 Series
  • Poles
    2 Pole(s)
  • Rated voltage (AC)
    250Vac
  • Mechanical durability (at no load)
    50 000 000 operations
  • Main function
    Relay
  • Connection type
    Solder pin
  • Compliant with standard(s)
    ANCE cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC EN 61000-4-4 EN 61000-4-5 EN 61810-1
  • Net Width (mm)
    27.7 mm
  • Primary brand
    Finder
  • Rated current
    10A (250Vac; AC-1) 10A (30Vdc; DC-1) 0.25A (110Vdc; DC-1) 0.12A (220Vdc; DC-1)
  • Ambient air temperature for operation
    -40...+85 °C
  • Rated impulse voltage (Uimp)
    4 kV
  • Net Height (mm)
    37.2 mm
  • Contacts type
    2C/O / DPDT (Double Pole Double Throw)
  • Electrical durability (with load)
    200 000 operations
  • Contacts coating
    AgNi (Silver Nickel)
  • Net Depth (mm)
    20.7 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

55.32.9.024.0000 Related Documents

Finder - 55 Series - Catalogue.pdf
