55.33.8.024.0030 Finder Control Relays

55.33.8.024.0030 on Powermatic Associates
Finder

Part#:55.33.8.024.0030

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

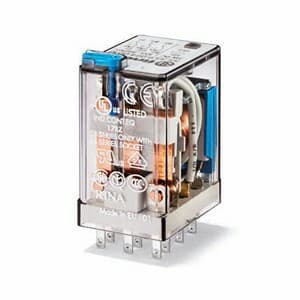

General purpose plug-in electromechanical relay with LED indicator - Finder (55 Series) - Control coil voltage 24Vac (50Hz/60Hz) - 3 poles (3P) - 3C/O / 3PDT (3 Pole Double Throw) contact - Rated current 10A (250Vac; AC-1) / 10A (30Vdc; DC-1) - Rated swit

Product Details

  • Rated current
    10A (250Vac; AC-1) 10A (30Vdc; DC-1) 0.25A (110Vdc; DC-1) 0.12A (220Vdc; DC-1)
  • Rated power
    500VA (230Vac; AC-15) 2500VA (250Vac; AC-1)
  • Mounting mode
    Plug-in
  • Net Width (mm)
    27.7 mm
  • Product series / family name
    55 Series
  • Poles
    3 Pole(s)
  • Ambient air temperature for operation
    -40...+85 °C
  • Contacts coating
    AgNi (Silver Nickel)
  • Connection type
    Solder pin
  • Contacts type
    3C/O / 3PDT (3 Pole Double Throw)
  • Rated impulse voltage (Uimp)
    4 kV
  • Main function
    Relay
  • Control Voltage (AC)
    24Vac (50Hz/60Hz)
  • Compliant with standard(s)
    ANCE cURus Lloyd Register (LR) CCC RINA IMQ CSA VDE EAC EN 61000-4-4 EN 61000-4-5 EN 61810-1
  • Electrical durability (with load)
    200 000 operations
  • Primary brand
    Finder
  • Rated voltage (AC)
    250Vac
  • Mechanical durability (at no load)
    20 000 000 operations
  • Net Height (mm)
    37.2 mm
  • Net Depth (mm)
    20.7 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

55.33.8.024.0030 Related Documents

Finder - 55 Series - Catalogue.pdf
