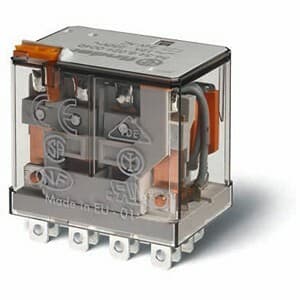

56.34.8.024.0000 Finder Control Relays

56.34.8.024.0000 on Powermatic Associates
Finder

Part#:56.34.8.024.0000

Manufacturer:Finder

Category:Control Relays

Product Lifecycle:Active

Product description

Finder 56.34.8.024.0000 is a relay with a connection type of Fast-on 187, designed to handle rated currents of 12A at 250Vac (AC-1) and 12A at 30Vdc, with lower ratings of 0.5A at 110Vdc and 0.25A at 220Vdc for Normally Open (NO) auxiliary contacts. It operates with a supply voltage of 4C/O or 4PDT (4 Pole Double Throw), suitable for ambient air temperatures ranging from -40 to +70 degrees Celsius for both operation and storage. This relay supports a communication protocol labeled as C and offers protection functions at 250Vac, with a control voltage (AC) of 4 kV. It is rated for an active power of 4 poles and comes in a color corresponding to a 24Vac (50Hz/60Hz) supply. The design includes plug-in residual current sensitivity, supports up to 100,000 operations for Normally Closed (NC) circuits, and is capable of 20,000,000 operations overall. The contacts are made of AgNi (Silver Nickel), ensuring durability and longevity.

Product Details

  • Primary brand
    Finder
  • Poles
    4 Pole(s)
  • Compliant with standard(s)
    cURus Lloyd Register (LR) CCC EN EC RINA CSA VDE EAC CE EN 61000-4-4 EN 61000-4-5 EN 61810-1
  • Rated voltage (AC)
    250Vac
  • Mechanical durability (at no load)
    20 000 000 operations
  • Main function
    Relay
  • Connection type
    Fast-on 187
  • Control Voltage (AC)
    24Vac (50Hz/60Hz)
  • Product series / family name
    56 series
  • Mounting mode
    Plug-in
  • Electrical durability (with load)
    100 000 operations
  • Contacts coating
    AgNi (Silver Nickel)
  • Ambient air temperature for operation
    -40...+70 °C
  • Rated impulse voltage (Uimp)
    4 kV
  • Rated power
    700VA (230Vac; AC-15) 3000VA (250Vac; AC-1)
  • Rated current
    12A (250Vac; AC-1) 12A (30Vdc; DC-1) 0.5A (110Vdc; DC-1) 0.25A (220Vdc; DC-1)
  • Contacts type
    4C/O / 4PDT (4 Pole Double Throw)

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
