AB7665-C HMS Networks Industrial Automation Components

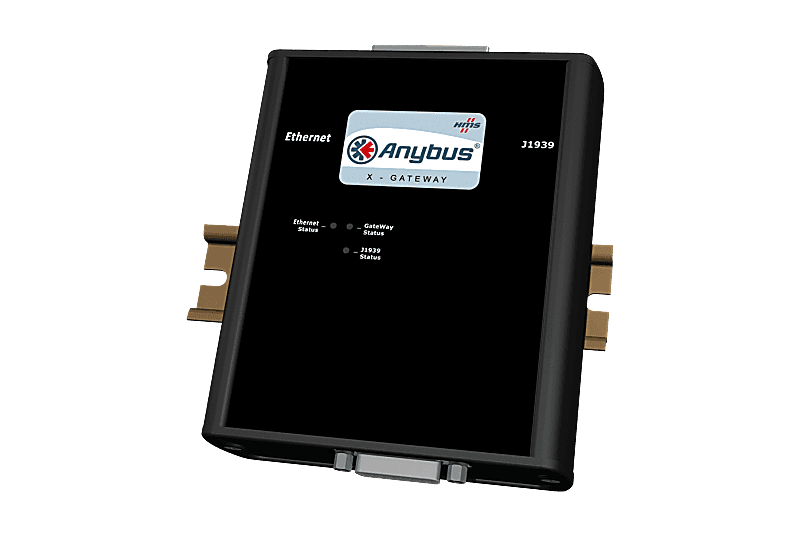

Anybus by HMS Networks AB7665-C is a gateway within the X-gateway series designed as a protocol translator gateway. It supports installation in both vertical and flat positions and features galvanic isolation on both BUS/Ethernet sides. The I/O configuration is manageable via a USB port using the Anybus Configuration Manager software. This part functions as an Ethernet adapter/server and includes a J1939 interface, 8 Ethernet IP address switches, and 10 LED indicators for fieldbus, sub-network, and device status monitoring. It requires a supply voltage of 19.2-28.8Vdc, with a nominal 24Vdc, and has dimensions of H127mm x W44mm x D114mm. The housing is made from aluminium and plastic, ensuring durability and resilience. Connection options include a 5-pin plug-in screw connector for SAE J1939, an RJ45 connector for 10/100Mbit/s Ethernet supporting both full and half duplex, a 9-pin D-sub female connector for serial RS-232 configuration, a 2-poles 5.08mm plug-in screw connector for power, and a USB connector for programming and configuration. It offers a degree of protection rated at IP20 NEMA 1 and is designed for DIN rail mounting. The AB7665-C supports Ethernet communication protocols, operates within an ambient air temperature range of -25 to +65°C, and consumes a maximum of 400mA current at 24Vdc, with a typical consumption of 200mA. It is designed for operation in environments with 5-95% relative humidity (non-condensing) and can store in temperatures ranging from -40 to +85°C. The Ethernet speed supported is 10/100Mbit/s.
