0046718 Lapp Industrial Automation Components

Name: 0046718
Brand: Lapp

Part#:0046718

Manufacturer:Lapp

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

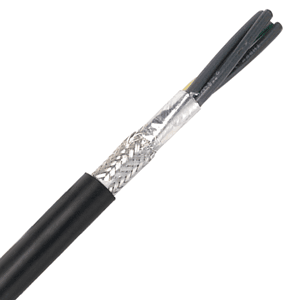

0046718 Lapp - ÖLFLEX HEAT 180 C MS 4G1,5

Product Details

NOMINAL OD (IN)
0.429
SERIES
ÖLFLEX® HEAT 180 C MS
SHIELDING
Foil Braid
CONDUCTOR MATERIAL
Tinned copper
CONDUCTOR STRANDING
Stranded
JACKET COLOR
Black
STANDARDS/APPROVALS
UL Approved CE Approved
AWG/GAUGE
16
VOLTAGE
600V
JACKET MATERIAL
Silicone Rubber
TEMPERATURE
-58°F to +302deg;F-50°C to +150°C
NOMINAL OD (MM)
10.9
MANUFACTURER PART NUMBER
0046718
Insulation Material
Silicone
Bend Radius
6 X Cable Diameter
Voltage
600 volts
Conductor Material
Finely Stranded Tinned Copper
Jacket Color
Black
Operating Temperature
-50 degrees celsius, 150 degrees celsius
Gauge
16 american wire gauge

Jacket Material

Silicone

Stranding

Class 5 Fine Wire

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

About the product

High Temp Cable, Flexible, ÖLFLEX HEAT 180 C MS, 16 AWG/4C, Shielded, 600V, UL AWM, cRU AWM FT2
