100050 Lapp Industrial Automation Components

100050 on Powermatic Associates
Lapp

Part#:100050

Manufacturer:Lapp

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

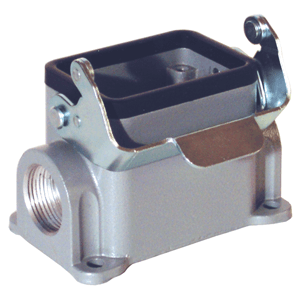

100050 Lapp - EPIC H-B 6 SGR 16 ZW/SO SMBASE W/GLAND

Product Details

  • THREAD SIZE
    16
  • TEMPERATURE
    -40°F to +212°C(-40°C to +100°C)
  • STANDARDS/APPROVALS
    UL Approved
  • SERIES
    EPIC HB 6
  • THREAD TYPE
    PG
  • NUMBER OF LEVERS
    1
  • PRODUCT TYPES
    Surface Mount Base
  • SEALING MATERIAL
    NBR
  • IP RATING
    IP65
  • MANUFACTURER PART NUMBER
    100050
  • HOOD TYPE
    Standard
  • LEAVER BOLT MATERIAL
    Zinc-plated steel
  • Connection Type
    Rectangular
  • Operating Temperature
    -40 degrees celsius, 125 degrees celsius

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
