Powermatic Associates Logo

2202040 Lapp Industrial Automation Components

2202040 on Powermatic Associates
Lapp

Part#:2202040

Manufacturer:Lapp

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

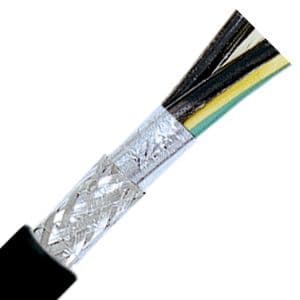

2202040 Lapp - ÖLFLEX TRAY II CY 2/4C

Product Details

  • NUMBER OF CONDUCTORS
    4
  • INSULATION
    PVC/Nylon
  • CONDUCTOR COLOR
    Black with white printing plus green/yellow ground
  • MANUFACTURER PART NUMBER
    2202040
  • NOMINAL OD (IN)
    1.309
  • CONDUCTOR MATERIAL
    Bare copper
  • DYNAMIC TEMPERATURE RATING
    -13°F to +221°F -25°C to +105°C
  • APPLICATION
    Industrial plant expansions; automotive plants; tray wiring; anywhere VNTC® cables are used
  • JACKET MATERIAL
    Thermoplastic Polymer
  • STATIC TEMPERATURE RATING
    -40°F to +221°F-40°C to +105°C
  • NOMINAL OD (MM)
    33.2
  • CONDUCTOR STRANDING
    Stranded
  • AWG/GAUGE
    2
  • VOLTAGE
    600V
  • STANDARDS/APPROVALS
    UL Approved CSA Approved CE Approved
  • SHIELDING
    Braid
  • TEMPERATURE RANGE
    -13°F to +194°F -25°C to +90°C
  • UL STYLE / STANDARD
    UL 13 UL 1063 UL 1277 UL 1690 UL 2250
  • JACKET COLOR
    Black
  • ATTRIBUTES
    UL Oil Res I/IISunlight resistant Direct burialNFPA 79
  • WEIGHT LBS/MFT
    1951
  • SERIES
    ÖLFLEX® TRAY II / TRAY II CY
  • TRAY RATINGS
    UL TC-ER
  • Bend Radius
    6 X Cable Diameter
  • Stranding
    Class K Fine Wire
  • Voltage
    600 volts
  • Jacket Color
    Black
  • Conductor Material
    Finely Stranded Bare Copper
  • Insulation Material
    Nylon, PVC
  • Gauge
    2 american wire gauge
  • Jacket Material
    Thermoplastic Polymer
  • Operating Temperature
    -25 degrees celsius, 90 degrees celsius

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

About the product

Cable, Flexible, ÖLFLEX TRAY II CY, 2 AWG/4C, Shielded, 600V, UL TC-ER, c(UL) CIC/TC FT4
