2206040 Lapp Industrial Automation Components
Part#:2206040
Manufacturer:Lapp
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

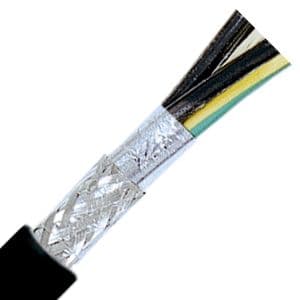

2206040 Lapp - ÖLFLEX TRAY II CY 4G16 6/4C
Product Details
- AWG/GAUGE 6
- JACKET MATERIAL Thermoplastic Polymer
- NUMBER OF CONDUCTORS 4
- SERIES ÖLFLEX® TRAY II / TRAY II CY
- SHIELDING Braid
- NOMINAL OD (IN) 0.918
- CONDUCTOR COLOR Black with white printing plus green/yellow ground
- NOMINAL OD (MM) 23.3
- TEMPERATURE RANGE -13°F to +194°F -25°C to +90°C
- VOLTAGE 600V
- INSULATION PVC/Nylon
- DYNAMIC TEMPERATURE RATING -13°F to +221°F -25°C to +105°C
- CONDUCTOR STRANDING Stranded
- STATIC TEMPERATURE RATING -40°F to +221°F-40°C to +105°C
- JACKET COLOR Black
- ATTRIBUTES UL Oil Res I/IISunlight resistant Direct burialNFPA 79
- TRAY RATINGS UL TC-ER
- STANDARDS/APPROVALS UL Approved CSA Approved CE Approved
- UL STYLE / STANDARD UL 13 UL 1063 UL 1277 UL 1690 UL 2250
- WEIGHT LBS/MFT 811
- APPLICATION Industrial plant expansions; automotive plants; tray wiring; anywhere VNTC® cables are used
- CONDUCTOR MATERIAL Bare copper
- MANUFACTURER PART NUMBER 2206040
- Jacket Color Black
- Insulation Material Nylon, PVC
- Gauge 6 american wire gauge
- Bend Radius 6 X Cable Diameter
- Voltage 600 volts
- Conductor Material Finely Stranded Bare Copper
- Jacket Material Thermoplastic Polymer
- Operating Temperature -25 degrees celsius, 90 degrees celsius
- Stranding Class 5 Fine Wire
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
About the product
Cable, Flexible, ÖLFLEX TRAY II CY, 6 AWG/4C, Shielded, 600V, UL TC-ER, c(UL) CIC/TC FT4
