221803 Lapp Industrial Automation Components

Name: 221803
Brand: Lapp

Part#:221803

Manufacturer:Lapp

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

221803 Lapp - ÖLFLEX TRAY II 3G1 18/3C

Product Details

AWG/GAUGE
18
SHIELDING
Unshielded
INSULATION
PVC/Nylon
STANDARDS/APPROVALS
UL Approved CSA Approved CE Approved
JACKET COLOR
Black
NOMINAL OD (MM)
7.5
TRAY RATINGS
UL ITC-ER UL PLTC-ER UL TC-ER
CONDUCTOR STRANDING
Stranded
NOMINAL OD (IN)
0.297
MANUFACTURER PART NUMBER
221803
CONDUCTOR MATERIAL
Bare copper
VOLTAGE
600V
APPLICATION
Industrial plant expansions; automotive plants; tray wiring; anywhere VNTC® cables are used
JACKET MATERIAL
Thermoplastic Polymer
TEMPERATURE RANGE
-13°F to +194°F -25°C to +90°C
WEIGHT LBS/MFT
57
NUMBER OF CONDUCTORS
3
STATIC TEMPERATURE RATING
-40°F to +221°F-40°C to +105°C
UL STYLE / STANDARD
UL 13 UL 1063 UL 1277 UL 1690 UL 2250
CONDUCTOR COLOR
Black with white printing plus green/yellow ground

DYNAMIC TEMPERATURE RATING

-13°F to +221°F -25°C to +105°C

SERIES

ÖLFLEX® TRAY II / TRAY II CY

ATTRIBUTES

UL Oil Res I/IISunlight resistant Direct burialNFPA 79

Jacket Material

Thermoplastic Polymer

Bend Radius

4 X Cable Diameter

Operating Temperature

-25 degrees celsius, 90 degrees celsius

Gauge

18 american wire gauge

Insulation Material

Nylon, PVC

Stranding

Class 5 Fine Wire

Jacket Color

Black

Conductor Material

Finely Stranded Bare Copper

Voltage

600 volts

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

About the product

Tray Cable, ÖLFLEX TRAY II, 18 AWG/3C, 600V, UL TC-ER, UL MTW, c(UL) CIC/TC FT4

221803 Related Documents

Datasheet.pdf

Similar products from: Lapp Industrial Automation Components

602418S

Lapp

Lapp 24/18C UL/CSA

536 in stock

302403S

Lapp

302403S Lapp - UNITRONIC 300 S 24/3C

6 in stock

220804

Lapp

220804 Lapp - ÖLFLEX TRAY II 4G10 8/4C

54 in stock

1121830C

Lapp

Machined socket, 14AWG, Silver, Epic

49 in stock

601004CY

Lapp

601004CY Lapp - ÖLFLEX 190 CY 4G6 10/4C

49 in stock

601203

Lapp

601203 Lapp - ÖLFLEX 190 3G4 / AWG12

42 in stock

Manufacturer warranty

221803 Lapp

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 221803 with other Industrial Automation Components products

AWG/GAUGE

SHIELDING

INSULATION

STANDARDS/APPROVALS

JACKET COLOR

NOMINAL OD (MM)

TRAY RATINGS

CONDUCTOR STRANDING

NOMINAL OD (IN)

MANUFACTURER PART NUMBER

Selected product

Backordered

Lapp

221803 Lapp - ÖLFLEX TRAY II 3G1 18/3C

AWG/GAUGE18

SHIELDINGUnshielded

INSULATIONPVC/Nylon

STANDARDS/APPROVALSUL Approved CSA Approved CE ...

JACKET COLORBlack

NOMINAL OD (MM)7.5

TRAY RATINGSUL ITC-ER UL PLTC-ER UL TC-E...

CONDUCTOR STRANDINGStranded

NOMINAL OD (IN)0.297

MANUFACTURER PART NUMBER221803

100 in stock

Lapp

221203 Lapp - ÖLFLEX TRAY II 3G4 12/3C

AWG/GAUGE12

SHIELDINGUnshielded

INSULATION-

STANDARDS/APPROVALS-

JACKET COLORBlack

NOMINAL OD (MM)10.7

TRAY RATINGS-

CONDUCTOR STRANDINGStranded

NOMINAL OD (IN)0.423

MANUFACTURER PART NUMBER-

190 in stock

Lapp

221403 Lapp - ÖLFLEX TRAY II 3G2.5 14/3C

AWG/GAUGE14

SHIELDINGUnshielded

INSULATION-

STANDARDS/APPROVALS-

JACKET COLORBlack

NOMINAL OD (MM)9.2

TRAY RATINGS-

CONDUCTOR STRANDINGStranded

NOMINAL OD (IN)0.362

MANUFACTURER PART NUMBER-

About the manufacturer

Powermatic Associates is an authorized Lapp distributor, proudly offering a wide array of high-quality industrial connectivity solutions from this renowned manufacturer. Lapp, a leader in the development and production of cable systems, connectivity components, and industrial communication technologies, delivers innovative products designed to enhance operational efficiency across various industri...

Recently viewed products

MDI3CRL34A7-EQ

Novanta IMS

Novanta IMS MDI3CRL34A7-EQ is a stepper motor characterized by its integrated driver and 2-phase DC stepper motor functionality. It features an external single-end 512-line optical encoder and a single motor stack, enhanced by the Plus 2 version for expanded features. This part offers a 14-pin locking wire crimp connector and a 10-pin friction-lock wire crimp connector for its connections. It supports RS-422 and RS-485 communication protocols. The supply voltage ranges from 12Vdc to 75Vdc, with specific ratings at 24Vdc, 48Vdc, and 72Vdc. It is designed for mounting with an 85x85mm flange and can operate in ambient air temperatures ranging from 0 to +85°C. The MDI3CRL34A7-EQ has an IP20 degree of protection, a moment of inertia of 1kg.cm^2, a stall torque of 233N.cm, and a resolution characterized by a 1.8° step angle.

0 in stock

M-1719-1.5S

Novanta IMS

Novanta IMS M-1719-1.5S is a 2-phase DC stepper motor within the Stepper motors sub-range, featuring a smooth-shaft design with a single flat and triple (3) motor stack. It is equipped with bare end flying leads for connection, and operates at a rated current of 1.5A with a supply voltage range of 24Vdc to 48Vdc, specifically 24Vdc. This stepper motor is designed for mounting with a 42x42mm flange and can operate within an ambient air temperature range of -25 to +40°C. It has a moment of inertia of 0.082kg.cm^2 and provides a stall torque of 53N.cm (75oz-in). The motor is designed for storage in temperatures ranging from -25 to +70°C and offers a resolution of 1.8° step angle.

0 in stock

LMHOE571

Novanta IMS

Novanta IMS LMHOE571 is a stepper motor designed for applications requiring integrated drive and high-torque capabilities. This model falls within the high-torque stepper motors sub-range and features a single motor stack in an open-loop system. It offers a variety of connection types, including a 2-pin screw-lock connector, a 7-pin spring-clamp connection, and a 9-pin D-sub male connector, ensuring versatile integration options. The LMHOE571 supports Ethernet/IP and Modbus TCP communication protocols for efficient network integration. It operates on a supply voltage range of 12Vdc to 60Vdc, with optimal performance at 24Vdc or 48Vdc. The motor is designed for mounting via a 57x57mm flange, providing a secure installation. With a degree of protection rated at IP20, it is suited for use in environments where protection against solid objects is necessary. The motor's moment of inertia is 0.14kg.cm^2, and it delivers a stall torque of 107N.cm. It achieves precise motion control with a resolution of 1.8° step angle.

0 in stock

PSWS 3M-10/S90

Turck

PSWS 3M-10/S90 Turck - PSWS 3M-10/S90 Actuator and Sensor Cordset, Connection Cable

0 in stock

RKC 4.5T-3-RSM 50/S90/S3570

Turck

RKC 4.5T-3-RSM 50/S90/S3570 Turck - RKC 4.5T-3-RSM 50/S90/S3570 Actuator and Sensor Cordset, Extension Cordset

0 in stock

LMHCE572C

Novanta IMS

Novanta IMS LMHCE572C is a stepper motor within the high-torque stepper motors sub-range, featuring an integrated driver and a high-torque DC stepper motor. It is designed with an incremental magnetic encoder, double (2) motor stack, and operates on closed-loop hMTechnology. The connection types include a 4-pin M12 male connector, a 12-pin M12 male connector, and a 5-pin M12 male connector, supporting Ethernet/IP and Modbus TCP communication protocols. The supply voltage ranges from 12Vdc to 60Vdc, with optimal performance at 24Vdc and 48Vdc. It is mounted via a 57x57mm flange and offers a degree of protection rated at IP65. The moment of inertia is 0.22kg.cm^2, with a stall torque of 186N.cm and a resolution of a 1.8° step angle.

0 in stock

BI2-WLK-AP6-0.3-RSE 4T-P7X2/S1611

Turck

BI2-WLK-AP6-0.3-RSE 4T-P7X2/S1611 Turck - BI2-WLK-AP6-0.3-RSE 4T-P7X2/S1611

0 in stock

MDI3CRL34A7-EQ

Novanta IMS

0 in stock

M-1719-1.5S

Novanta IMS

0 in stock

LMHOE571

Novanta IMS

0 in stock

LMHCE572C

Novanta IMS

0 in stock

MDI3CRL34A7-EQ

Novanta IMS

0 in stock

M-1719-1.5S

Novanta IMS

0 in stock

LMHOE571

Novanta IMS

0 in stock

Relevant products

2218050

Verified stock: 0

2218050 Lapp - ÖLFLEX TRAY II CY 5G1 18/5C

Lapp

221809

Verified stock: 0

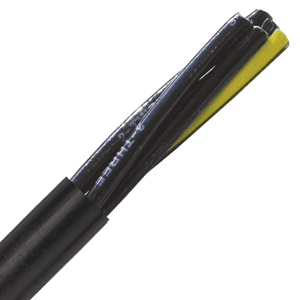

221809 Lapp - ÖLFLEX TRAY II 9G1 18/9C
