281825 Lapp Electronic Components

Name: 281825
Brand: Lapp

Part#:281825

Manufacturer:Lapp

Category:Electronic Components

Product Lifecycle:Active

Product description

281825 - LAPP ÖLFLEX® CONTROL TM Unshielded Multiconductor Cable - 18 AWG 25 Conductor - Gray

Product Details

NOMINAL OD (MM)
16.7
JACKET COLOR
Gray
NOMINAL OD (IN)
0.656
CONDUCTOR STRANDING
Stranded
SERIES
ÖLFLEX® CONTROL TM / TM CY
SHIELDING
Unshielded
AWG/GAUGE
18
INSULATION
Specially formulated PVC/nylon
DYNAMIC TEMPERATURE RATING
-13°F to +194°F-25°C to +90°C
TEMPERATURE
-13°F to +194°F-25°C to +90°C
ATTRIBUTES
Oil-resistantUL TC-ER approved NFPA 88
TRAY RATINGS
UL TC-ER
STANDARDS/APPROVALS
UL Approved CE Approved
MANUFACTURER PART NUMBER
281825
CONDUCTOR MATERIAL
Bare copper
NUMBER OF CONDUCTORS
25
STATIC TEMPERATURE RATING
-40°F to +221°F-40°C to +105°C
VOLTAGE
600V
WEIGHT LBS/MFT
311

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

281825 Related Documents

Datasheet.pdf

Similar products from: Lapp Electronic Components

1119614

Lapp

1119614 - LAPP ÖLFLEX® CLASSIC 110 Flexible Power and Control Cable - Unshielded - 8 AWG 4 Conductors - Gray

85 in stock

53320353

Lapp

53320353 - LAPP SKINTOP® DIX-M Multi Cable Sealing Bushing - 3 x 0.208 inch holes - For M20 and NPT 1/2

1 in stock

52003490

Lapp

52003490 - LAPP SKINTOP® SKINDICHT® Locknut SM - 7 PG - Metallic

6 in stock

4510001

Lapp

4510001 - LAPP ÖLFLEX® Harmonized Hook-Up Wire - Type H05V-K - 22 AWG - Green/Yellow

328 in stock

0046629

Lapp

0046629 - LAPP ÖLFLEX® HEAT 180 MS High Temperature Control Cable - Unshielded - 14 AWG 3 Conductor - Black

59 in stock

0026608

Lapp

0026608 - LAPP ÖLFLEX® FD 90 Unshielded Single Conductor Cable - 4 AWG 1 Conductor - Black

25 in stock

Manufacturer warranty

281825 Lapp

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Worldwide Shipping and Delivery

Secure Payment Processing

Warranty

Responsive Customer Support

Got Questions? We've Got Answers!

Need more details?

Feel free to chat with us

Compare 281825 with other Electronic Components products

NOMINAL OD (MM)

JACKET COLOR

NOMINAL OD (IN)

CONDUCTOR STRANDING

SERIES

SHIELDING

AWG/GAUGE

INSULATION

DYNAMIC TEMPERATURE RATIN...

TEMPERATURE

Selected product

Backordered

Lapp

281825 - LAPP ÖLFLEX® CONTROL TM Unshielded Multiconductor Cable - 18 AWG 25 Conductor - Gray

NOMINAL OD (MM)16.7

JACKET COLORGray

NOMINAL OD (IN)0.656

CONDUCTOR STRANDINGStranded

SERIESÖLFLEX® CONTROL TM / TM CY

SHIELDINGUnshielded

AWG/GAUGE18

INSULATIONSpecially formulated PVC/nyl...

DYNAMIC TEMPERATURE RATING-13°F to +194°F-25°C to +90°...

TEMPERATURE-13°F to +194°F-25°C to +90°...

85 in stock

Lapp

1119614 - LAPP ÖLFLEX® CLASSIC 110 Flexible Power and Control Cable - Unshielded - 8 AWG 4 Conductor...

NOMINAL OD (MM)16.2

JACKET COLORGray

NOMINAL OD (IN)0.638

CONDUCTOR STRANDINGStranded

SERIESÖLFLEX® CLASSIC 110

SHIELDINGUnshielded

AWG/GAUGE8

INSULATIONPVC

DYNAMIC TEMPERATURE RATING-

TEMPERATURE-

25 in stock

Lapp

0026608 - LAPP ÖLFLEX® FD 90 Unshielded Single Conductor Cable - 4 AWG 1 Conductor - Black

NOMINAL OD (MM)11.8

JACKET COLORBlack

NOMINAL OD (IN)0.465

CONDUCTOR STRANDINGStranded

SERIESÖLFLEX® FD 90

SHIELDINGUnshielded

AWG/GAUGE4

INSULATION-

DYNAMIC TEMPERATURE RATING-

TEMPERATURE-

About the manufacturer

Powermatic Associates is an authorized Lapp distributor, proudly offering a wide array of high-quality industrial connectivity solutions from this renowned manufacturer. Lapp, a leader in the development and production of cable systems, connectivity components, and industrial communication technologies, delivers innovative products designed to enhance operational efficiency across various industri...

Recently viewed products

MDI3CRL34A7-EQ

Novanta IMS

Novanta IMS MDI3CRL34A7-EQ is a stepper motor characterized by its integrated driver and 2-phase DC stepper motor functionality. It features an external single-end 512-line optical encoder and a single motor stack, enhanced by the Plus 2 version for expanded features. This part offers a 14-pin locking wire crimp connector and a 10-pin friction-lock wire crimp connector for its connections. It supports RS-422 and RS-485 communication protocols. The supply voltage ranges from 12Vdc to 75Vdc, with specific ratings at 24Vdc, 48Vdc, and 72Vdc. It is designed for mounting with an 85x85mm flange and can operate in ambient air temperatures ranging from 0 to +85°C. The MDI3CRL34A7-EQ has an IP20 degree of protection, a moment of inertia of 1kg.cm^2, a stall torque of 233N.cm, and a resolution characterized by a 1.8° step angle.

0 in stock

M-1719-1.5S

Novanta IMS

Novanta IMS M-1719-1.5S is a 2-phase DC stepper motor within the Stepper motors sub-range, featuring a smooth-shaft design with a single flat and triple (3) motor stack. It is equipped with bare end flying leads for connection, and operates at a rated current of 1.5A with a supply voltage range of 24Vdc to 48Vdc, specifically 24Vdc. This stepper motor is designed for mounting with a 42x42mm flange and can operate within an ambient air temperature range of -25 to +40°C. It has a moment of inertia of 0.082kg.cm^2 and provides a stall torque of 53N.cm (75oz-in). The motor is designed for storage in temperatures ranging from -25 to +70°C and offers a resolution of 1.8° step angle.

0 in stock

LMHOE571

Novanta IMS

Novanta IMS LMHOE571 is a stepper motor designed for applications requiring integrated drive and high-torque capabilities. This model falls within the high-torque stepper motors sub-range and features a single motor stack in an open-loop system. It offers a variety of connection types, including a 2-pin screw-lock connector, a 7-pin spring-clamp connection, and a 9-pin D-sub male connector, ensuring versatile integration options. The LMHOE571 supports Ethernet/IP and Modbus TCP communication protocols for efficient network integration. It operates on a supply voltage range of 12Vdc to 60Vdc, with optimal performance at 24Vdc or 48Vdc. The motor is designed for mounting via a 57x57mm flange, providing a secure installation. With a degree of protection rated at IP20, it is suited for use in environments where protection against solid objects is necessary. The motor's moment of inertia is 0.14kg.cm^2, and it delivers a stall torque of 107N.cm. It achieves precise motion control with a resolution of 1.8° step angle.

0 in stock

RKC 4.5T-3-RSM 50/S90/S3570

Turck

RKC 4.5T-3-RSM 50/S90/S3570 Turck - RKC 4.5T-3-RSM 50/S90/S3570 Actuator and Sensor Cordset, Extension Cordset

0 in stock

PSWS 3M-10/S90

Turck

PSWS 3M-10/S90 Turck - PSWS 3M-10/S90 Actuator and Sensor Cordset, Connection Cable

0 in stock

LMHCE572C

Novanta IMS

Novanta IMS LMHCE572C is a stepper motor within the high-torque stepper motors sub-range, featuring an integrated driver and a high-torque DC stepper motor. It is designed with an incremental magnetic encoder, double (2) motor stack, and operates on closed-loop hMTechnology. The connection types include a 4-pin M12 male connector, a 12-pin M12 male connector, and a 5-pin M12 male connector, supporting Ethernet/IP and Modbus TCP communication protocols. The supply voltage ranges from 12Vdc to 60Vdc, with optimal performance at 24Vdc and 48Vdc. It is mounted via a 57x57mm flange and offers a degree of protection rated at IP65. The moment of inertia is 0.22kg.cm^2, with a stall torque of 186N.cm and a resolution of a 1.8° step angle.

0 in stock

HOM2175SB

Schneider Electric

Square D by Schneider Electric HOM2175SB is a load center designed for use with a secondary surge arrestor. It has a rated current of 5A and operates at a rated voltage of 120Vac/240Vac. This load center is protected by a NEMA 1 enclosure and is suitable for single-phase (1PH) electrical networks.

0 in stock

MDI3CRL34A7-EQ

Novanta IMS

0 in stock

M-1719-1.5S

Novanta IMS

0 in stock

LMHOE571

Novanta IMS

0 in stock

LMHCE572C

Novanta IMS

0 in stock

MDI3CRL34A7-EQ

Novanta IMS

0 in stock

M-1719-1.5S

Novanta IMS

0 in stock

LMHOE571

Novanta IMS

0 in stock

Relevant products

281825CY

Verified stock: 0

281825CY - LAPP ÖLFLEX® CONTROL TM CY Shielded Multiconductor Cable - 18 AWG 25 Conductor - Gray

Lapp

281812

Verified stock: 0

281812 - LAPP ÖLFLEX® CONTROL TM Unshielded Multiconductor Cable - 18 AWG 12 Conductor - Gray

Lapp

281803

Verified stock: 0

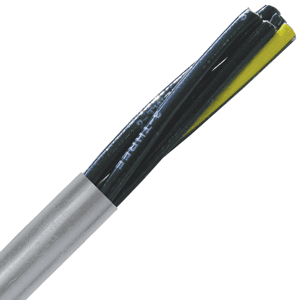

281803 - LAPP ÖLFLEX® CONTROL TM Unshielded Multiconductor Cable - 18 AWG 3 Conductor - Gray

Lapp

281819CY

Verified stock: 0

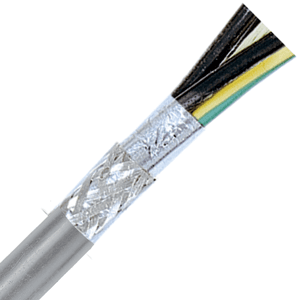

281819CY - LAPP ÖLFLEX® CONTROL TM CY Shielded Multiconductor Cable - 18 AWG 19 Conductor - Gray
